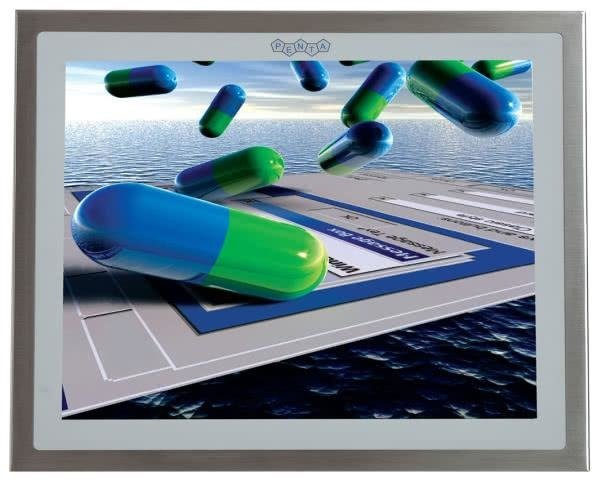

Inox-D15

Bezwentylatorowy komputer panelowy IP65 15" 1024x768 z Intel Atom D2550 1.86 GHz, rezystancyjnym ekranem dotykowym, VGA, 2x GbE, 5x RS-232, 1x RS-232/422/485, 8x USB 2.0, 1x SATA i audio (0 ~ +50°C); obudowa ze stali nierdzewnej

---

Features

• Modular high-end Industrial-PC with complete closed housing (IP65)
• Durable and error-free even under critical environmental conditions
• Fast data input via Touchscreen
• Various input - and reader devices (Legic , RFID etc.) and Scanner are connectable
• Wireless-LAN integrable
• Expandable with PCI-Slots (1 x mini-PCIe; 1x PCIe x1, 1x PCI)
• Passive cooling concept without ventilation-slot and without fan
• Stainless Steal -housing with especially surface, protected all around
• Industrial suited mounting- and fastening concept with mounting bracket
• Cablecover with industrial grade cabel feedthrough (IP65)

Special features

• The stainless steel housing (IP65 from all sides) is made to meet requirements
  for the chemical and food industries as well as the high hygienic sensitive
  production areas of eg. pharmaceutical industry

Specifications

• System


• CPU: dual-core Intel Atom D2550 1.86 GHz
• Cache: 1024 kB L2
• Chipset: NM10PHC
• RAM: Up to 4 GB DDR3
• Graphic controller: Intel GMA
• Video memory: Up to 224 MB (DVMT)
• Storage Media: 24 x 7 HDD or industrial grade CF-Card
• Display size: 15"

• Display resolution: 1024x768
• Weight: 8.6 kg


• Interfaces


• Touch: analog resistive with extended transparency (> 80%),
  surface hard coated against abrasion
• USB: 4x USB2.0 and 4x USB internal
• Power supply: 110/240 Vac 50/60 Hz wide input range or 24 Vdc (internal; optional)
• Ethernet: 2x 1 GB/s
• Serial Ports: 5 x serial RS232 (2 intern); 1 x RS232/422/485
• Parallel Port: LPT (intern; optional for extern use)
• Digital I/O: 8-bit digital I/O ; 4 bit in- / Output (intern; optional for extern use)
• Extension-Cards: 1x mini-PCIe, 1x PCIe x1, 1x PCI
• Audio: 1x Mic-In, 1x Line-out
• VGA: 1x connector for external Monitor


• Operating Systems


• Windows: Windows 7, Windows XP, XP embedded
• Linux: Linux, Embedded Linux (on request; customized)


• Environment conditions


• Operating Temperature: 0 ~ +50°C
• Storage Temperature: -10 ~ +60°C


• Certificates


• CE Certificate of Conformity
• Environment EMC-Directive: 89/336/EEC
  EN 55022/5.1995 class A, EN 50082-2/3.1995, VCCI class A, CISPR 22 class A,
  47 CFR Part 15 Subpart B (FCC), AS/NZS 3548 class A, EN 60950, RoHS compliant,
  ISO 9001 (2008), ISO 13485 (2007), WEEE-Reg.-Nr. DE 70246803

Ordering Information

• Inox-D15 - Fanless panel PC IP65 15" 1024x768 with dual-core Intel Atom D2550 1.86 GHz CPU, resistive touch screen and VGA, 2x GbE, 5x RS-232, 1x RS-232/422/485, 8x USB 2.0, 1x SATA and audio interface (-0 ~ +50°C); stainless steel housing

Optional Accessories

• Mountings for wall , ceiling etc.


• Wireless LAN components


• Scanner and reader


• Stainless Steal keyboards (IP65)
