The Express-IBE2 is scheduled to EOL.
Last buy Date: 2019/07/19
Last shipment Date: 2020/06/12

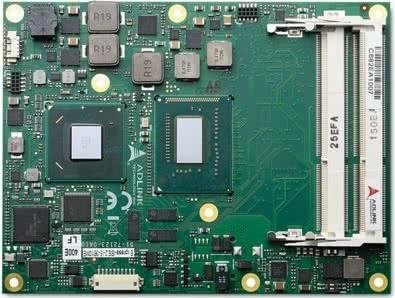

Moduł COM Express Basic Type 2 z Intel Core i3-3217UE 1.6 GHz, VGA/LVDS/SVDO, 1 x GbE, 8 x USB 2.0, 2 x SATA-3, 2 x SATA-2 i HD-audio (0 ~ +60°C) - pamięć ECC DDR3Features
- Dual-core Intel Core i3 Processor with Mobile Intel QM77 Express Chipset
- Up to 16 GB Dual Channel DDR3 SDRAM at 1600 MHz with ECC support
- Single/dual channel 18/24-bit LVDS and SDVO
- Five PCIe x1, one PCIe x16 (Gen3) for graphics (or general purpose x8/4/1)
- Four SATA, one PATA IDE, GbE and eight USB 2.0
- Supports Smart Embedded Management Agent (SEMA) functions
- Extreme Rugged operating temperature: -40 ~ +85°C (optional)
- Express-IBE2-i3-3217UE - COM Express Basic Type 2 module with dual-core Intel Core i3-3217UE 1.6 GHz CPU and VGA/LVDS/SVDO, 1 x GbE, 8 x USB 2.0, 2 x SATA-3, 2 x SATA-2 and HD-audio interface (0 ~ +60°C) - ECC DDR3 RAM
- HTS-IBE2-B - Heatspreader for Express-IBE2 for bottom mounting
- HTS-IBE2-BT - Heatspreader for Express-IBE2 for top mounting
- THS-IBE2-B - Low profile passive heatsink for Express-IBE2 for bottom mounting
- THSH-IBE2-B - High profile passive heatsink for Express-IBE2 for bottom mounting
- THSF-IBE2-B - High performance heatsink with Fan for Express-IBE2 with max 35 W CPU for top mounting
Parametry techniczne:
| End of Life: | Tak |
