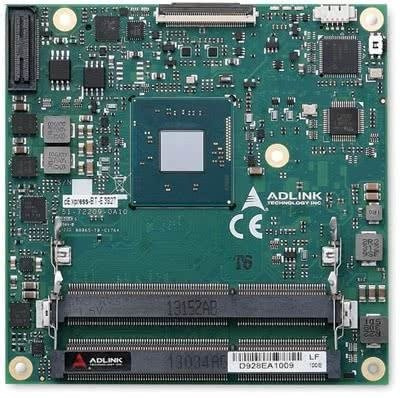

Moduł COM Express Compact Type 6 z procesorem Intel quad-core Atom E3845 1.91 GHz, VGA/2 x DDI, 1 x GbE, 2 x UART, 1 x USB 3.0, 7 x USB 2.0, 2 x SATA-2 i HD-audio (0 ~ +60°C)
Features
Features
- Quad-core Intel Atom Processor System-on-Chip (SOC)
- Up to 8 GB Dual Channel DDR3L at 1333 MHz
- VGA and two DDI channels (optional LVDS) Three PCIe x1, GbE
- Two SATA 3 Gb/s, one USB 3.0, seven USB 2.0
- Supports Smart Embedded Management Agent (SEMA) functions
- Extreme Rugged operating temperature: -40 ~ +85°C (optional)
- cExpress-BT-E3845 - COM Express Compact Type 6 module with Intel quad-core Atom E3845 1.91 GHz CPU and VGA/2 x DDI, 1 x GbE, 2 x UART, 1 x USB 3.0, 7 x USB 2.0, 2 x SATA-2 and HD-audio interface (0 ~ +60°C)
- HTS-cBT-B - Heatspreader for cExpress-BT with threaded standoffs for bottom mounting
- HTS-cBT-BT - Heatspreader for cExpress-BT with through hole standoffs for top mounting
- THS-cBT-B - Low profile passive heatsink for cExpress-BT with threaded standoffs for bottom mounting
- THS-cBT-BT - Low profile passive heatsink for cExpress-BT with through hole standoffs for top mounting
- THSH-cBT-B - High profile passive heatsink for cExpress-BT with threaded standoffs for bottom mounting
- THSF-cBT-B - High profile heatsink with Fan for cExpress-BT with threaded standoffs for bottom mounting (-40 ~ + 85°C operation)
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
