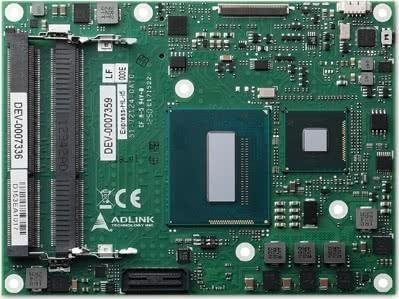

Moduł COM Express Basic Type 6 z procesorem quad-core Intel Core i7-4860EQ 2.4 GHz, VGA/LVDS/3 x DDI, 1 x GbE, 2 x UART, 4 x USB 3.0, 4 x USB 2.0, 4 x SATA-3 i HD-audio (0 ~ +60°C)
Features
Features
- 4th Generation Intel i7 Processor with Mobile Intel QM87 Express Chipset
- Up to 16 GB Dual Channel DDR3L at 1600 MHz
- Three DDI ports support 3 independent displays
- Seven PCIe x1, one PCIe x16
- GbE, four SATA 6 Gb/s, four USB 3.0 and four USB 2.0
- Supports Smart Embedded Management Agent (SEMA) functions
- Extreme Rugged operating temperature: -40 ~ +85°C (optional)
- Express-HL-i7-4860EQ - COM Express Basic Type 6 module with quad-core Intel Core i7-4860EQ 2.4 GHz CPU and VGA/LVDS/3 x DDI, 1 x GbE, 2 x UART, 4 x USB 3.0, 4 x USB 2.0, 4 x SATA-3 and HD-audio interface (0 ~ +60°C)
- HTS-HL-B - Heatspreader for Express-HL with threaded standoffs for bottom mounting
- HTS-HL-BT - Heatspreader for Express-HL with through hole standoffs for top mounting
- THS-HL-BL - Low profile passive heatsink for Express-HL with threaded standoffs for bottom mounting
- THS-HL-BLT - Low profile passive heatsink for Express-HL with through hole standoffs for top mounting
- THSH-HL-BL - High profile passive heatsink for Express-HL with threaded standoffs for bottom mounting
- THSF-HL-BL - High profile heatsink with Fan for Express-HL with threaded standoffs for bottom mounting
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
