Features
1. External cooling fan is required.
2. Power Supply Module: CompactPCI redundant power supply x2 (500 W)
3. All models above do not include any system or peripheral boards.
4. DC input models available for OEM programs
- Dual 3U CompactPCI systems, each with five peripheral slots and one system slot
- 1/1 250 W CompactPCI Power supplies
- Suitable for both rackmount and desktop applications
- Comprehensive EMC shielding
- CompactPCI Standard: 2.0 R2.0
- Form Factor: 3U cPCI
- Enclosure: 19" 3U rackmount enclosure
- Power Supply: PICMG 2.11 47-pin 3U cPCI power module(s), dependent on subsystem configuration
- Backplane: 3U backplane(s), model dependent on subsystem configuration
- Dimensions (W x H x D): 482.56 x 133.35 x 250.0 mm
- Certifications:
• DIN IEC 68-2-6 test FC
• DIN IEC 68-2-27 test Ea
• DIN41 494, part 5
• IEC 60297-3, EIA 310-D

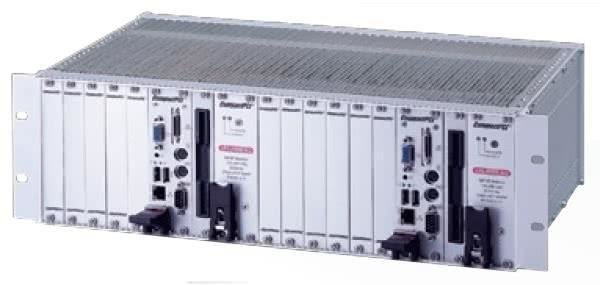

- cPCIS-1202 - 3U PCI Dual-system with 6 + 6 slot and 1 + 1 250 W cPCI Power Supplies
1. External cooling fan is required.
2. Power Supply Module: CompactPCI redundant power supply x2 (500 W)
3. All models above do not include any system or peripheral boards.
4. DC input models available for OEM programs
