Features
1: External cooling fan is required.
2: Do not include any system or peripheral boards.
3: DC input models available for OEM programs
- 3U CompactPCI single system, seven peripheral slot configuration or dual system, five peripheral slot configuration
- Equipped with CompactPCI redundant power supply (Max. output 500 W)
- Suitable for both rackmount and desktop applications
- Comprehensive EMC shielding
- CompactPCI Standard: 2.0 R2.0
- Form Factor: 3U cPCI
- Enclosure: 19" 3U rackmount enclosure
- Power Supply: PICMG 2.11 47-pin 3U cPCI power module(s)
- Backplane: 3U backplane(s), model dependent on subsystem configuration
- Dimensions (W x H x D): 482.56 x 133.35 x 250.0 mm
- Certifications:
• DIN IEC 68-2-6 test FC
• DIN IEC 68-2-27 test Ea
• DIN41 494, part 5
• IEC 60297-3, EIA 310-D

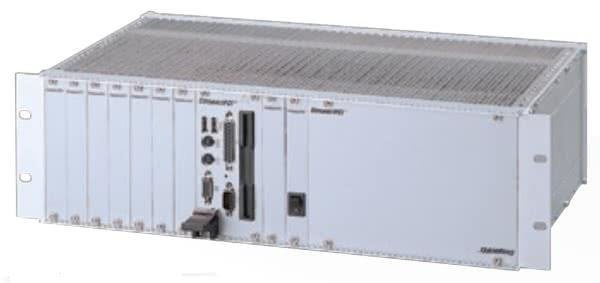

- cPCIS-1102 - 3U CompactPCI Subsystem with 8-slot Backplane + 1-slot x 50 mm depth RTM (system slot only) and 2 x 250 W hot swappable CompactPCI Power Supplies
1: External cooling fan is required.
2: Do not include any system or peripheral boards.
3: DC input models available for OEM programs
