Features
1.At least 400 LFM (2 m/s) external cooling fan is required.
2.CompactPCI redundant power supply 2 x 250 W (500 W)
3. All models above do not include any system or peripheral boards.
- EN50155-Compliant Transportation Platforms
- 3U CompactPCI single system, seven peripheral slot configuration
- Equipped with wide temperature range CompactPCI redundant power supply (Max. output 500 W)
- Suitable for both rackmount and desktop applications
- Comprehensive EMC shielding
- cPCI power supply support wide range temperature operation -20 ~ + 70°C ( -20 ~ +50°C at full load with at least 400 LFM air flow, power efficiency derating linearly to 50% at + 70°C.)
- CompactPCI Standard: 2.0 R2.0
- Form Factor: 3U cPCI
- Enclosure: 19" 3U rackmount enclosure
- Power Supply: PICMG 2.11 47-pin 3U cPCI power module(s), dependent on subsystem configuration
- Backplane: 3U backplane(s), model dependent on subsystem configuration
- Dimensions (W x H x D): 482.56 x 133.35 x 250.0 mm
- Certifications:
• DIN IEC 68-2-6 test FC
• DIN IEC 68-2-27 test Ea
• DIN41 494, part 5
• IEC 60297-3, EIA 310-D

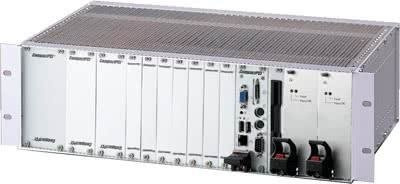

- cPCIS-ET1102 - 3U cPCI Sub-system with 3U Enclosure. 32-bit 8-slot B/P, cBP-3062A and two ETT 3U RPSUs
1.At least 400 LFM (2 m/s) external cooling fan is required.
2.CompactPCI redundant power supply 2 x 250 W (500 W)
3. All models above do not include any system or peripheral boards.
