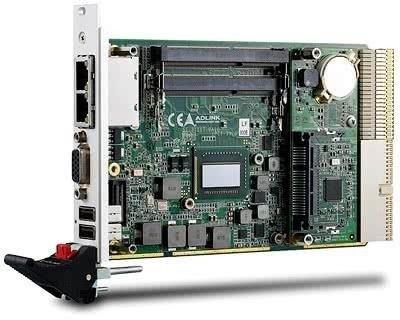

Name: cPCI-3971/655L/M4G
Brand: Adlink Technology

Features

Specifications

CPU:
• μFC-BGA Intel Core i7-2655LE Processor 2.2 GHz (Turbo boost to 2.9 GHz), 4 MB LLC cache, 25 W TDP
• Supports Intel Hyper-Threading and Turbo Boost Technology
Chipset: Intel QM67 PCH
Memory: Dual channel DDR3-1067/1333 SDRAM with ECC via two SODIMM sockets, up to 16 GB capacity (dependent on availability of memory modules)
BIOS: AMI EFI BIOS, 64 Mbit SPI flash memory
CompactPCI Bus:
• PCI 32-bit/33 MHz, 3.3 V or 5 V universal V(I/O)
• Supports operation in system slot as master or in peripheral slot as stand-alone blade without connectivity to CompactPCI bus (Satellite mode)
PICMG Standards:
• PICMG 2.0 CompactPCI R3.0
• PICMG 2.1 Hot Swap R2.0
• PICMG 2.9 System Management R1.0
• PICMG 2.30 PlusIO

PMC/XMC: One optional PCI 32-bit/66 MHz PMC site or PCI-Express x1 XMC site on 2nd or 3rd layer
Ethernet: Two PCIe Intel 82574L Gigabit Ethernet controllers on SBC for two 10/100/1000BASE-T ports on front panel, switchable to J2
Graphics:
• Integrated in Intel processor, 3D engine
• DB-15 VGA port on front panel, switchable to rear, supports up to QXGA 2048x1536 pixels @75Hz, 32-bits
• Two DisplayPorts on front panel, support up to 2560×1600 pixels @60Hz
• Dual independent display
Serial Port:
• One RS-232/422/485 port on front panel
• One RS-232/422/485 10-pin header on DB-3970L2
USB:
• Up to four USB 2.0 front panel ports
• Three USB 2.0 ports to J2
PCI-Express: PCI-Express x4 to J2

SBC:
• CompactFlash socket
• Optional CFast socket (site shared with CF adapter board)
RTM:
• Three SATA 3Gb/s ports to J2
• Supports SATA RAID 0/1/5/10

LED: Power (green/red), WDT (amber), HDD (blue), Overheat (red)
Battery: Coin cell lithium battery onboard for RTC CMOS RAM
Watchdog Timer: System Reset and NMI, with programmable interval, 1-65535 sec or 1-65535 minutes
Hardware Monito: Monitors CPU temperature, system temperature, and DC voltages by IPMI
TPM: Infineon SLB 9635 TT1.2 (optional, support upon request)

Form Factor:
• 3U 4HP CompactPCI
• 100mm x 160mm (LxW)
• Equipped with UHM J2 connector for full PICMG 2.30 compatibility
Operating Temperature: 0 ~ +60°C
Storage Temperature: -40 ~ +85°C
Rel. Humidity: 95% non-condensing
Shock: 20 G peak-to-peak, 11 ms duration, non-operating
Vibration 2 Grms random vibration, 5 ~ 500 Hz, each axis, operating
Power Consumption: 3.3 V@0.71 A, 5 V@6.97 A; Total 37.2 W
(Core i7-2655LE, 4 GB DDR3-1333 SODIMM under Windows XP with 100% CPU loading)
Weight Net: 389 g with heatsink
Certifications: CE/ FCC
