Features
- 2nd Generation Intel Core i7 quad/dual-core processor
- Supports DDR3-1333 SDRAM with ECC via SODIMM, up to 16 GB
- Supports IPMI for system health monitoring
- DisplayPort, VGA, DVI, HDMI graphics interfaces
- Supports system/peripheral slot operation
- Processor & System
- CPU:
• μFC-BGA Intel Core i7-2715QE Processor 2.1 GHz (Turbo boost to 3.0 GHz), 6 MB LLC cache, 45 W TDP
• Supports Intel Hyper-Threading and Turbo Boost Technology - Chipset: Intel QM67 PCH
- Memory:
Dual channel DDR3-1067/1333 SDRAM with ECC via two SODIMM sockets, up to 16 GB capacity (dependent on availability of memory modules) - BIOS: AMI EFI BIOS, 64 Mbit SPI flash memory
- CompactPCI Bus:
• PCI 32-bit/33 MHz, 3.3 V or 5 V universal V(I/O)
• Supports operation in system slot as master or in peripheral slot as stand-alone blade without connectivity to CompactPCI bus (Satellite mode) - PICMG Standards:
• PICMG 2.0 CompactPCI R3.0
• PICMG 2.1 Hot Swap R2.0
• PICMG 2.9 System Management R1.0 - Connectivity
- PMC/XMC:
One optional PCI 32-bit/66 MHz PMC site or PCI-Express x 1 XMC site on 2nd or 3rd layer - Ethernet:
• Four PCIe Intel 82574L Gigabit Ethernet controllers on SBC for four 10/100/1000BASE-T ports on front panel
• RTM cPCI-R3P00: two GbE on I/O panel switched from SBC
• RTM cPCI-R3P00T: two GbE on I/O panel from onboard Intel 82580DB GbE controller - Graphics:
• Integrated in Intel processor, 3D engine
• DB-15 VGA port on front panel, switchable to rear, supports up to QXGA 2048x1536 pixels @75Hz, 32-bits
• Two DisplayPorts on front panel, support up to 2560×1600 pixels @60Hz; DVI, VGA and HDMI interfaces available by adapter cable (cPCI-3970G only)
• Dual independent display - Serial Port:
• Up to four serial ports
• One RS-232/422/485 port on front panel
• One RS-232/422/485 10-pin header on DB-3970L2
• Two serial ports on rear panel: one with Tx, Rx signal only, one converted from USB port supporting RS-232/422/485 - PS/2 Front panel: PS/2 Keyboard Mouse port (8/12 HP version only)
- USB:
• Up to four USB 2.0 front panel ports
• Three USB ports to rear, two on RTM panel - Audio: Line-in and Line-out ports on front panel (cPCI-3970D only)
- Storage
- SBC:
• One SATA 6 Gb/s direct connector for 2.5" onboard HDD (8HP & 12HP version only)
• CompactFlash socket
• Optional CFast socket (site shared with CF adapter board) - RTM:
• Three 7-pin SATA signal connectors
• Supports SATA RAID 0/1/5/10 - Operating System
- OS:
• Microsoft Windows XP Professional
• Microsoft Windows 7, 64bit version
• Red Hat Enterprise Linux 6 32/64-bit
• Fedora 14
• Wind River VxWorks 6.8, 6.9 - Miscellaneous
- LED: Power (green/red), WDT (amber), HDD (blue), Overheat (red)
- Battery: Coin cell lithium battery onboard for RTC CMOS RAM
- Watchdog Timer: System Reset and NMI, with programmable interval, 1-65535 sec or 1-65535 minutes
- Hardware Monitor: Monitors CPU temperature, system temperature, and DC voltages by IPMI
- TPM: Infineon SLB 9635 TT1.2 (optional, support upon request)
- Mechanical & Environmental
- Form Factor:
• 3U 8HP CompactPCI
• 100mm x 160mm (LxW) - Operating Temperature: 0 ~ +60°C
- Storage Temperature: -40°C to 85°C
- Rel. Humidity: 95% non-condensing
- Shock: 20 G peak-to-peak, 11 ms duration, non-operating
- Vibration: 2 Grms random vibration, 5-500Hz, each axis, operating
- Power Consumption: 0.71A@3.3V, 6.97A@5V, total 37.2W
(Core i7-2655LE, 4GB DDR3-1333 SODIMM under Windows XP with 100% CPU loading) - Weight Net: 389 g with heatsink
- Certifications: CE/ FCC

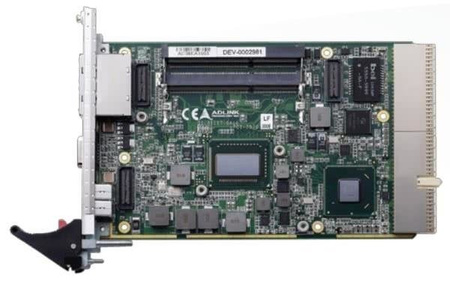

- cPCI-3970Q/715Q/M8G - 2-slot (8HP) 3U CompactPCI Blade with Intel i7-2715QE processor and 2 x 4 GB DDR3-1333, 2 x GbE, VGA, 2 x USB, CF
- cPCI-R3P00 - 8 HP Rear I/O module for cPCI-3970 with GbE x2,COM x2, USB x2, SATA x3, VGA, 50mm depth
- cPCI-R3P00T - 8 HP Rear I/O module for cPCI-3970 with GbE x2,COM x2, USB x2, SATA x3, VGA, 80mm depth
- DB-3CFAST - CFast socket adapter board
- DP-DVI cable - DisplayPort to DVI adapter cable (One DP-DVI cable is included with the cPCI-3970G.Features)
- DP-VGA cable - DisplayPort to VGA adapter cable
- DP-HDMI cable - DisplayPort to HDMI adapter cable
