Features
- Supports dual-core Intel AtomTM D525
- Up to 4 GB DDR3-800 soldered memory
- Up to QXGA 2048x1536 RGB display
- Processor & System
- CPU: μFC-BGA dual-core Intel AtomTM Processor D525 1.8 GHz, 1 MB L2 cache, TDP 13 W
- Chipset: Intel ICH8M I/O Controller Hub
- Memory: Single channel DDR3-800 SDRAM soldered onboard, up to 4 GB
- BIOS: AMIBIOS8, 16 Mbit SPI flash memory
- CompactPCI Bus:
• PCI 32-bit/33 MHz, 3.3 V or 5 V universal V (I/O)
• Host only - PICMG Standards:
• PICMG 2.0 CompactPCI R3.0
• PICMG 2.1 Hot Swap R2.0 - Connectivity
- PMC/XMC:
One optional PCI 32-bit/66 MHz PMC site or PCI-E x 1 XMC site on 2nd or 3rd layer - Ethernet:
• Two PCI-E Intel 82574L Gigabit Ethernet controllers
• Two 10/100/1000BASE-T front panel ports, switchable to rear - Graphics:
• Integrated in Intel AtomTM processor
• DB-15 VGA port on front panel, switchable to rear
• Analog monitor support up to QXGA 2048x1536 pixels @60 Hz, 32-bit - USB:
• Up to four USB 2.0 front panel ports
• One USB port on RTM - PS/2: Front panel PS/2 KB/MS port
- Serial Port:
• Three RS-232/422/485/485+ selectable serial ports
• One DB-9 port on front panel, two on rear - Audio: Line-in and line-out ports on front panel
- PCI-Express: One PCI-Express lane to J2
- GPIO: Four GPIO pins to J2
- Storage
- SBC:
• One Serial ATA direct connector for 2.5" onboard HDD
• CompactFlash socket - RTM: Two 7-pin SATA signal connectors
- Operating System
- OS:
• Microsoft Windows XP Professional, x64 Edition
• Microsoft Windows 7
• Fedora 8, 12
• Red Hat Enterprise Linux 5.3
• Wind River VxWorks 6.8, 6.6, 5.5.1 - Miscellaneous
- LED: Power (green), WDT (red)
- Battery: Coin cell lithium battery onboard for RTC CMOS RAM
- Watchdog Timer: System Reset and NMI, with programmable interval, 1-65535 seconds or minutes
- Hardware Monitor: Monitors CPU temperature, system temperature and DC voltages
- Mechanical & Environmental
- Form Factor:
• 3U 8HP CompactPCI
• 100 x 160 mm (LxW) - Operating Temperature: -40 ~ +85˚C extreme extended temperature
- Storage Temperature: -40 ~ +85˚C
- Rel. Humidity: 95% non-condensing
- Shock: 15 G peak-to-peak, 11 ms duration, non-operating
- Vibration: 2 Grms random vibration, 5 ~ 500 Hz, each axis, operating
- Power Consumption: 3.48 A@5 V, Total 17.4 W
(Atom D525 1.8GHz, 4GB soldered DDR3-800 memory under Windows XP with 100% CPU loading) - Weight: Net 466 g (8HP dual slot version with heatsink)
- Certifications: CE/ FCC

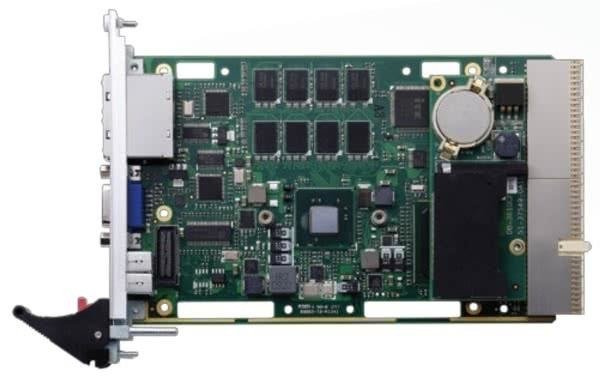

- cPCI-EX3615D/D525/M4G - 2-slot (8HP) 3U CompactPCI blade with Intel Atom Processor D525 and 4 GB DDR3-800 soldered memory; -40°C to 85°C extreme extended temperature
- cPCI-R3610 - 8HP Rear I/O module for cPCI-3615 with GbE x 2, COM x 2, USB x 1, SATA x 2, VGA, 50 mm depth
- cPCI-R3610T - 8HP Rear I/O module for cPCI-3615 with GbE x 2, COM x 2, USB x 1, SATA x 2, VGA, 80 mm depth
