Features
- No command frequency limitation
- Up to 64 axes, serially connected
- No need for terminal boards – reduces space
- The scanning cycle time up to 0.97 ms at 20 Mbps when 64 axes are connected
- Point-to-point application can be easily completed with multiple single-axis modules
- Supports linear/s-curve acceleration and deceleration
- Number of Axes: 1
- Slave ID Consumption: 1
- Transmission Speed: 2.5/5/10/20 Mbps
- Support Motor Name: SANYO R series
- Encoder Input Frequency (Max): 6.55 MHz @ 4xAB
- Pulse Output Rate (Max): 6.55 MHz
- Motion Features:
- Linear Interpolation: -
- Circular Interpolation -
- Home Return Mode: 13
- Programmable Acceleration/Deceleration: Yes
- Motion Profile: T/S curve
- Dedicated Moiton I/O: Yes
- Hardware Emergency Input: Yes
- Position Compare & Trigger: 10 KHz
- High Speed Trigger: -
- Path Move: -
- Power Indicator: Displays the status of the 3.3 Vdc internal control power (red LED)
- Operating Temperature: 0 ~ +50°C
- Operating Ambient Humidity: 80% RH or less (non-condensing within the +10 ~ +50°C range)
- Environmental: RoHS compliant
- Vibration: JIS C0040 compliant
- Weight: Approximately 50 g
- Dimensions (W x H x D): 52.4 x 16.3 x 69.5 mm

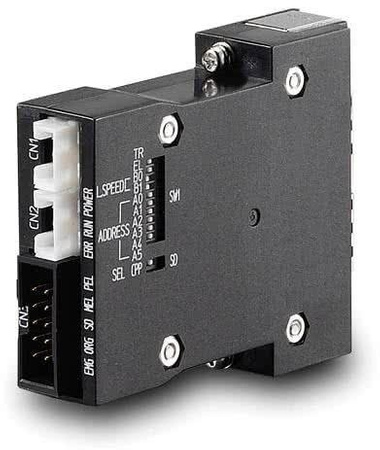

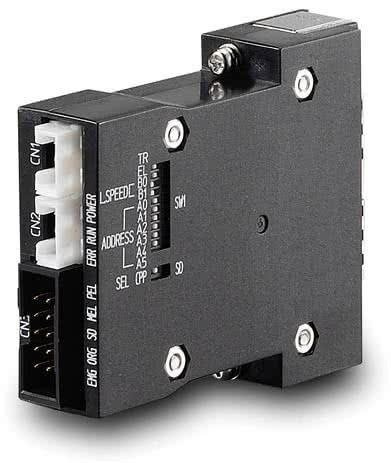

- MNET-SAN - Motionnet distributed single-axis motion control module for Sanyo R series
