Features
- Compact and rugged system design
- Embedded Intel Core2 Duo P8400 CPU
- Multi-camera solution: up to four Gigabit Ethernet cameras
- PoE, IEEE 802.3af Compliant, Powered Device (PD) auto detection
- Rich I/O support: RS-232/485, USB, and isolated digital I/Os
- Dual storage support: HDD and CompactFlash cards
- Hardware monitoring: temperature, voltage, and watchdog timer
- CPU: Intel Core2 Duo P8400, 2.26 GHz
- System Memory: Up to 4 GB DDR3
- Camera Interface: 4–CH Power Over Ethernet
IEEE 802.3af Compliant,
Max. power output: 7 W per channel - Chipset: Intel GM45 / ICH9 chipset
- VGA: Analog CRT support up to 1600 x 1200
- USB: Four USB ports, USB 2.0 compliant
- Audio: AC97, Mic In/Speaker Out
- COM Ports: COM1/COM2: RS-232/RS-422/RS-485 (set via the BIOS)
- Digital I/O: 16-CH isolated digital input and output, 5.0 KV isolation protection
- Keyboard/ Mouse: Combed PS/2 type mini-DIN connectors
- Power Supply:
DC: 10 ~ 30 Vdc, AT mode
AC: 90 ~ 240 Vac, AT mode - Operating Temp.: 0 ~ +55˚C
- Humidity: 0% to 90%
- Dimensions (W x D x H): 200 x 165 x 85 mm
- Power Consumption: 50 W
(with 2 GB DDRAM and 2 GB CompactFlash) - Storage:
On-board SATA port for 2.5" HDD/SSD installation
1 type I CF socket, supporting PIO and DMA modes - Random Vibration:
Operating:
5 ~ 100 Hz, 0.00142 g2/Hz;
100 ~ 500 Hz, -6 dB/Octave, 0.5 Grms, 3 axes, 30 minutes/axis - Safety Compliance: CE/FCC, RoHS
- Windows 7/XP/XP Embedded

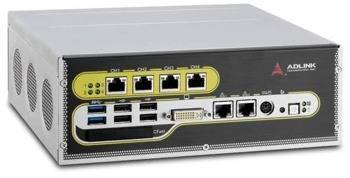

- EOS-1000 - 4-CH PoE Embedded Vision System with Intel Core2 Duo P8400 Processor
- 4 GB DDR3 upgrade - Upgrade to 4 GB DDR3 memory
- 160 GB HDD option - Factory-installation of 160 GB SATA hard disk drive (0 ~ +60°C)
- 8 GB SSD option - Factory-installation of 8 GB SATA solid state disk (0 ~ +70°C)
- 40 GB SSD option - Factory-installation of 40 GB SATA solid state disk (0 ~ +70°C)
