Features
- 6U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R3.0)
- 128-CH isolated digital inputs and 128-CH isolated digital outputs
- Non-polarity digital input range
- Isolated input voltage up to 28 VDC
- Isolation voltage up to 2500 VRMS
- Sink current up to 300 mA on each isolated output
- Interrupt sources: 128-CH DI Change-of- State
- Output status read back
- Isolated Digital Input
- Number of channels: 128
- Maximum input range: 28 V, non-polarity
- Digital logic levels: 0-28 V, non-polarity
Input high voltage: 5-28 V
Input low voltage: 0-1.5 V - Input resistance: 2.4 kΩ @ 1/2 W
- ESD protection CKT switch (Forward)
- Isolation voltage: 2500 Vrms channel-to-system
- Interrupt sources: 128 channel Change-of-state (COS)
- Data transfer: programmed I/O
- Isolated Digital Output
- Number of channels: 128
- Supply voltage: 5-35 V
- Output type: open collector Darlington transistor
- Sink current: 300 mA for one channel @ 100% duty
- Isolation voltage: 2500 Vrms channel-to-system
- Data transfer: programmed I/O
- Isolation +5 V Power Supply
- Output Voltage: +5 V
- Output Current: 100 mA max. (@ 40˚C)
- General Specifications
- I/O connector: Two 200-pin dual port VHDCI female
- Operating temperature: 0˚C to 60˚C
- Storage temperature: -20˚C to 80˚C
- Relative humidity: 5% to 95%, non-condensing
- Power requirements: 3.3 V 300 mA typical, +5 V 1.26 A typical
- Dimensions (not including connectors): 233.35 mm (L) x 160 mm (W)
- Operating Systems
- Windows 7/Vista/XP/2000/2003 Server
- Linux
- Windows CE (call for availability)
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- PCIS-DASK for Windows
- PCIS-DASK/X for Linux

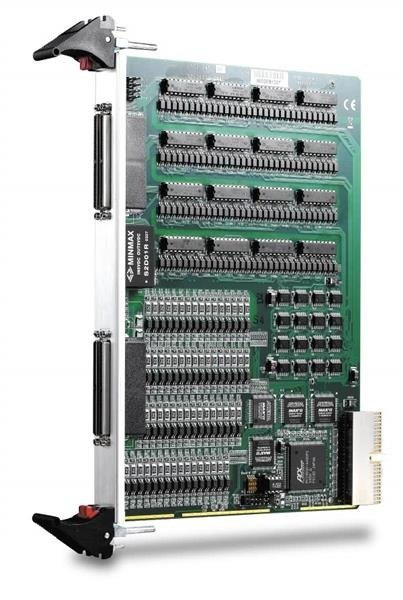

- cPCI-7452 - 128-CH Isolated DI & 128-CH Isolated DO Module
- Terminal Boards
- DIN-100S-01 - Terminal Board with One 100-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)
- Cable
- ACL-102150 - SCSI-100 to MINI SCSI-100 connector, 1 M (cPCI-7452 only)
