Features
- 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R2.1)
- 64-CH isolated digital outputs
- Isolation Voltage: 5000 Vrms
- Isolated Digital Output
- Number of channels: 64
- Output type: open collector Darlington transistor
Source current:
500 mA for single channel @ 100% duty cycle
260 mA for all channels @ 10% duty - Power dissipation: Max. 1.47 W per chip (8 DO channels)
- Supply voltage: 5-35 V
- Isolation voltage: 5000 Vrms
- Data transfers: programmed I/O
- General Specifications
- I/O connector: 100-pin SCSI-II female
- Operating temperature: 0˚C to 60 ˚C
- Storage temperature: -20˚C to 80 ˚C
- Relative humidity: 5% to 95%, non-condensing
- Power requirements: +5 V 560 mA typical
- Dimensions (not including connectors): 160 mm x 100 mm
- Operating Systems
- Windows 7/Vista/XP/2000/2003 Server
- Linux
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- PCIS-DASK for Windows
- PCIS-DASK/X for Linux

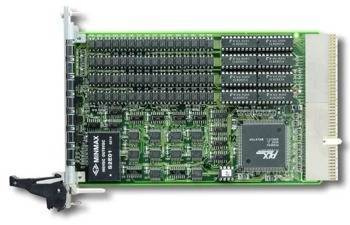

- cPCI-7434P - 64-CH Isolated DO Card with Source Current Transistor
- Terminal Boards
- DIN-100S-01 - Terminal Board with One 100-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)
- Cable
- ACL-102100-1 - 100-pin SCSI-II cable (mating with AMP-787882-9), 1 M
