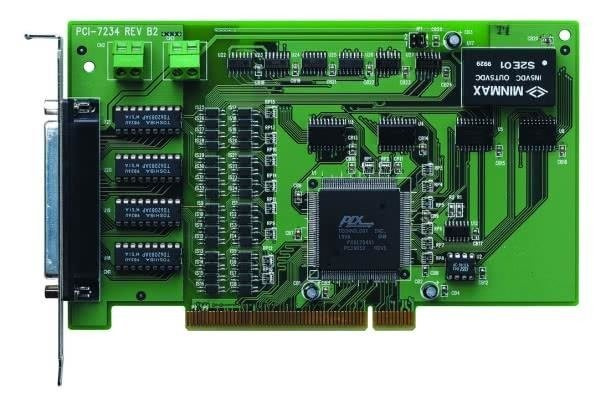

PCI-7234

Features

• Support a 32-bit 5 V PCI bus
• 32-CH isolated digital outputs
• 2500 Vrms optical isolation
• Sink current up to 500 mA on single isolated output

Specifications

• Isolated Digital Output


• Number of channels: 32
• Output type: Darlington transistor
• Sink current:
  500 mA for single channel @ 100% duty
  500 mA for all channels @ 20% duty
• Power dissipation: Max. 2.25 W per chip (8 DO channels)
• Supply voltage: 5-35 Vdc
• Isolation voltage: 2500 Vrms
• Data transfers: programmed I/O


• General Specifications


• I/O connector: 37-pin D-sub female
• Operating temperature: 0°C to 60 °C
• Storage temperature: -20°C to 80 °C
• Relative humidity: 5% to 95%, non-condensing
• Power requirements: +5 V @ 180 mA typical (with internal DC-DC power)
• Dimensions (not including connectors): 175 mm X 107 mm

Software Support

• Operating Systems


• Windows 7/Vista/XP/2000/2003 Server
• Linux
• Windows CE (call for availability)


• Recommended Software


• AD-Logger
• VB.NET/VC.NET/VB/VC++/BCB/Delphi
• DAQBench


• Driver Support


• DAQPilot for Windows
• DAQPilot for LabVIEW
• DAQ-MTLB for MATLAB
• PCIS-DASK for Windows
• PCIS-DASK/X for Linux

Ordering Information

• PCI-7234 - 32-CH Isolated DO Card

Accessories

• Terminal Boards


• DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting (Cables are not included)


• ACLD-9137-01 - General-Purpose Terminal Board with One 37-pin D-sub Male Connector


• Cable


• ACL-10137-1MM - 37-pin D-sub M/M cable, 1 M (DIN-37D-01)


• ACL-10137-1MF - 37-pin D-sub M/F cable, 1 M (ACLD-9137-01)
