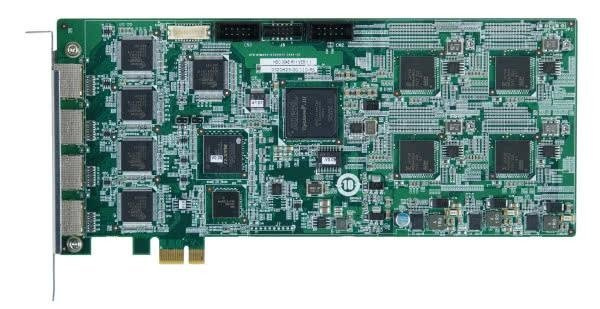

HDC-304E

Features

• Compatible with Windows XP, Windows 7 and Linux
• Equipped with four HDMI input ports
• Encoding or decoding up to 1080p HD video
• Pass through for transmitting uncompressed video up to 1080p resolution
• Reduce the amount of hard disk space needed by real-time H.264 recording compression capability
• Enables the system to support up to 8-channel input by adding multiple video capture cards
• SDK available for customer to create customized applications
• PCI Express interface provides higher bandwidth and great performance

Specifications

• Interface


• Video Input: 4 channels
• Video Input type: HDMI
• Audio Input: 4 channels
• Audio Input Type: HDMI
• Video Output: 1 channel
• Video Output Type: HDMI output cable kit
• Audio Output: 1 channel
• Audio Output Type: HDMI output cable kit
• Bus Interface: PCIe x1
• Loop Through: 1 channel


• Video Processing


• Video Compression: H.264/AVC High Profile Level 4.2
• Input Resolution & Frame Rate:
  1920 x 1080 x 60p/ 59.94p/ 50p
  1920 x 1080 x 60i/ 59.94i/ 50i
  1280 x 720 x 60p/ 59.94p/ 50p
  720 x 480 x 60i/59.94i
  720 x 576 x 50i
• Record Resolution / Frame Rate / Bit Rate:
  1920 x 1080 x 60p/ 59.94p/ 50p, encoding video bit rate from 6 Mbps to 30 Mbps
  1920 x 1080 x 60i/ 59.94i/ 50i, encoding video bit rate from 6 Mbps to 24 Mbps
  1280 x 720 x 60p/ 59.94p/ 50p, encoding video bit rate from 4 Mbps to 24 Mbps
  720 x 480 x 60i/59.94i, encoding video bit rate from 2 Mbps to 10 Mbps
  720 x 576 x 50i, encoding video bit rate from 2 Mbps to 10 Mbps


• Audio Processing


• Audio Compression: MPEG-1 Audio Layer2
• Bitrate: 256 k


• Functionality


• Multiple Card Support: 2 cards, 8 channels
• HDCP Compliant: Yes


• System Requirement


• System:
  x86 PC compatible computer, Intel Pentium 4 2.0 GHz or above for video record
  Suggest using DXVA or CUDA capable graphic card for realtime video playback
• Memory: 1GB or more
• OS Environment:
  Microsoft Windows XP Service Pack2 (SP2) (32-bit version)
  Microsoft DirectX 9.0c (32bit)
  Microsoft .NET Framework 2.0 (32 bit version)
  Linux: Fedora 10 (Kernel 2.6.27)


• Software Support


• Device Driver:
  Compatible with Windows XP, Windows 7, Linux Kernel 2.6.27
• SDK:
  Windows: Provide SDK and demo program with sample source code in C#
  Linux: Provide SDK and driver/demo program with sample source code in C


• Others


• Dimensions: 230 x 116 mm
• Operation Temperature: -20 ~ +65°C, non-condensing
• Power Consumption: 12.7 W (12 V@0.61 A, 3.3 V@1.63 A)

Ordering Information

• HDC-304E-R11 - PCI Express video/audio capture card with four HDMI input channels, 1920x1080@60p, and Hardware H.264 codec
