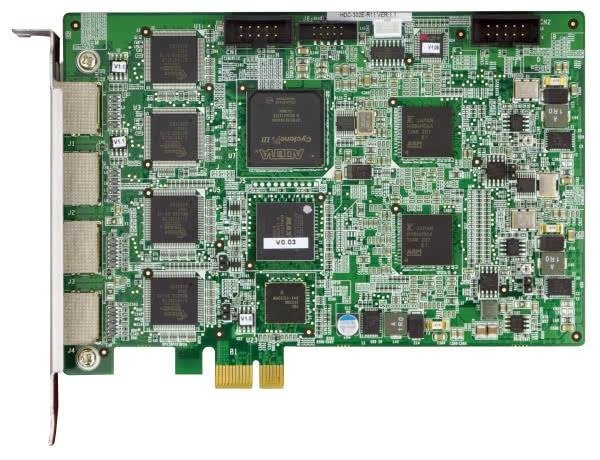

HDC-302E

Features

• Compatible with Windows XP, Windows 7 and Linux
• Equipped with two HDMI input ports
• Encoding or decoding up to 1080p HD video
• Pass through for transmitting uncompressed video up to 1080p resolution
• Captures or records HD video in H.264 format
• Playbacks the recordings on HDMI display
• SDK available for customer to create customized applications

Specifications

• Interface


• Video Input: 2 channels
• Video Input Type: HDMI
• Audio Input: 2 channels
• Audio Input Type: HDMI
• Video Output: 2 channels
• Video Output Type: HDMI
• Audio Output: 2 channels
• Audio Output Type: HDMI
• Bus Interface: PCIe x1
• Loop Through: 2 channels


• Video Processing


• Video Compression: H.264/AVC High Profile Level 4.2
• Input Resolution & Frame Rate:
  1920 x 1080 x 60p / 59.94p / 50p
  1920 x 1080 x 60i / 59.94i / 50i
  1280 x 720 x 60p / 59.94p / 50p
  720 x 480 x 60i /59.94i
  720 x 576 x 50i
• Record Resolution / Frame Rate / Bit Rate:
  1920 x 1080 x 60p / 59.94p / 50p, encoding video bit rate from 6 to 20 Mbps
  1920 x 1080 x 60i / 59.94i / 50i, encoding video bit rate from 6 to 20 Mbps
  1280 x 720 x 60p / 59.94p / 50p, encoding video bit rate from 4 to 20 Mbps
  720 x 480 x 60i / 59.94i, encoding video bit rate from 2 to 10 Mbps
  720 x 576 x 50i, encoding video bit rate from 2 to 10 Mbps


• Audio Processing


• Audio Compression: MPEG-1 Audio Layer 2
• Bit Rate: 256k


• Functionality


• Multiple Card Support: 4 cards, 8 channels
• HDCP Compliant: Yes


• System Requirement


• System:
  x86 PC compatible computer, Intel Pentium 4 2.0 GHz or above for video record
  Recommends using a DXVA or CUDA capable graphics card for real-time video playback
• Memory: 1 GB or more
• OS Environment:
  Microsoft Windows XP Service Pack 2 (SP2) (32-bit version)
  Microsoft DirectX 9.0c (32-bit)
  Microsoft .NET Framework 2.0 (32-bit version)
  Linux: Fedora 10 (Kernel 2.6.27)


• Software Support


• Device Driver: Compatible with Windows XP, Windows 7, Linux Kernel 2.6.27
• SDK:
  Windows: Provides SDK and demo program with sample source code in C#
  Linux: Provides SDK and driver/demo program with sample source code in C


• Others


• Dimensions: 155 x 98.6 mm
• Operating Temperature: 0 ~ +65°C, non-condensing
• Power Consumption: 9.53 W (12 V@0.46 A, 3.3 V@1.21 A)

Ordering Information

• HDC-302E-R11 - PCI Express video/audio capture card with two HDMI input channels and two HDMI output channels, 1920x1080@60p, and H.264 Hardware Codec
