Features
- PhotoMOS Relay:1 A @ 80 V (AC peck or DC)
- 7 PhotoMOS Relay Outputs
- 4 kV ESD Protection
- No Arcing, No Bounce, and No Switching Noise
- Photocouple Isolation
- Built-in Dual Watchdog
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- Wide Operating Temperature Range: -25 ~ +75°C
- Relay Output
- Channels: 7
- Relay Type: Power Relay (Form A)
- Form A PhotoMOS Relay:
Operating Load Voltage Range: 80 V (AC peck or DC) - Continuous Load Current: 1 A
- Peak Load Current: 3 A
- Output Off State Leakage Current: 1 uA
- Operate Time: 0.5 ms (Max.)
- Release Time: 0.2 ms (Max.)
- Electrical Endurance: Long Life, And No Arcing, No Bounce, And No Switching Noise
- Power-on Value: Yes, Programmable
- Safe Value: Yes, Programmable
- Communication
- Interface: RS-485
- Format: (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1)
- Baud Rate: 1200 ~ 115200 bps
- Protocol: DCON, Modbus RTU
- Dual Watchdog: Yes, Module (1.6 Seconds), Communication (Programmable)
- LED Indicators/Display
- System LED Indicator: Yes, 1 LED as Power/Communication Indicator
- I/O LED Indicators: -
- 7-Segment LED Display: -
- Isolation
- Intra-module Isolation, Field-to-Logic: 5000 Vdc 2000 Vdc
- EMS Protection
- ESD (IEC 61000-4-2):
• ±4 kV Contact for each Terminal
• ±8 kV Air for Random Line - EFT (IEC 61000-4-4):
• ±4 kV for 8 Relay and Power Line
• ±2 kV for RS-485 Port Line - Surge (IEC 61000-4-5): -
- Power
- Reverse Polarity Protection: Yes
- Input Voltage Range: 10 ~ 30 Vdc
- Consumption: 0.5 W 0.9 W
- Mechanical
- Dimensions (W x L x H): 72 x 123 x 35 mm
- Installation: DIN-Rail or Wall Mounting
- Environment
- Operating Temperature: -25 ~ +75°C
- Storage Temperature: -40 ~ +85 °C
- Humidity: 10 ~ 95% RH, Non-condensing

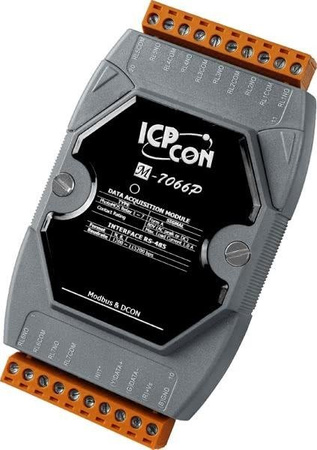

- M-7066P CR – 7-channel PhotoMOS Relay Output Module with DCON and Modbus Protocols (Gray Cover) (RoHS)
