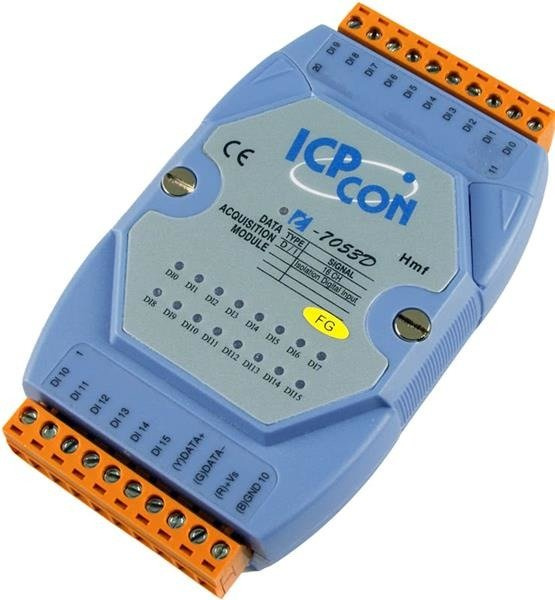

I-7053D_FG

• Channels: 16
• Input Type: Dry Contact, Source
• Off Level: Close to GND
• On Level: Open
• Effective Distance: 500m max.
• Counters channels: 16
• Max. Counters: 16-bit (65535)
• Max. Input Frequency: 100Hz
• Min. Pulse Width: 5ms

• Interface: RS-485
• Format: N, 8, 1
• Baud Rate: 1200 ~ 115200bps
• Protocol: DCON


• 1 LED as Power/ Communication indicator
• 16 LEDs as Digital Input indicators

• Input: 10 ~ 30Vdc
• Power Consumption: 1.4W

• Operating Temperature: -25 ~ +75°C
• Storage Temperature: -40 ~ +85°C
• Humidity: 5 ~ 95% RH, non-condensing

Dostępna też wersja szara, I-7053D_FG-G
