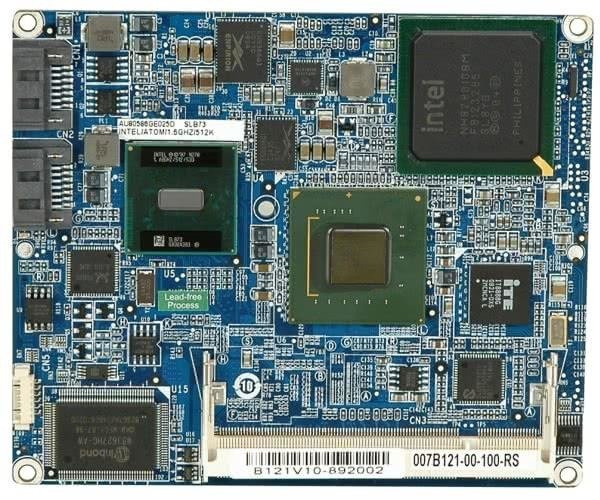

Moduł ETX z procesorem Intel Atom N270 1.6 GHz, VGA/TV-Out/LVDS, 1 x 10/100M LAN, 2 x RS-232, 4 x USB 2.0, 2 x SATA i 1 x IDE; temp. pracy 0 ~ +60°C
Features
Features
- ETX 3.0 CPU module with on-board dual SATA-150 ports
- Support four PCI, one ISA slot for expansion
- Support dual display for VGA + LVDS
- Support four USB 2.0, two SATA, one IDE interface
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: Intel Atom Processor N270 1.6 GHz with 533 MHz FSB
- System Chipset: Intel 945GSE + Intel 82801GBM/ICH7M
- BIOS: AMI
- System Memory: One 200-pin 533/400 MHz DDR2 SO-DIMM supported (system max. 2 GB)
- Ethernet: One10/100Mbps Realtek RTL8102E Ethernet chipset (PCIe interface)
- Super I/O: ITE IT8718
- I/O Interface:
• 4 x USB 2.0 (to Base Board)
• 2 x SATA (on CPU module)
• 1 x IDE (to base board)
• 1 x LPT (to base board)
• 2 x RS-232 (to base board)
• 1 x PS2 KB/MS (to base board) - Expansions:
• 4 x PCI , 32 bit / 33 MHz PCI bus to base board
• ISA support by ITE IT8888G - Display Interface:
• VGA/TV-Out Integrated in Intel 945GSE signal (to base board)
• 18-bit Dual channel LVDS signal (to base board) - Watchdog Timer: Software programmable supports 1 ~255 sec. system reset
- Power Supply: AT / ATX supported
- Power Consumption: 5 V@2.9 A
(Intel Atom Processor N270 with 1 GB DDR2) - Operating Temperature: 0 ~ +60°C
- Operating Humidity: 5 ~ 95% non-condensing
- Dimensions: 95 x 114 mm
- Weight: GW: 600 g / NW 250 g
- IEM-945GSE-N270-R10 - ETX 3.0 module with Intel Atom Processor N270 1.6 GHz, VGA/LVDS, LAN, USB, SATA and audio

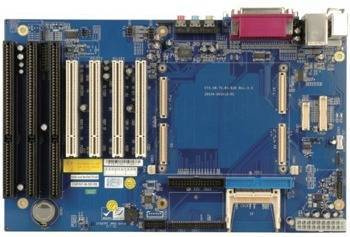

- IEM-DB-7S-RS-R30 - ATX size 7 slots ETX baseboard
