Features
- EPIC form factor, AMD LX800 processor embedded board with RoHS compliant
- DDR 400 MHz SO-DIMM SDRAM up to 1 GB
- VGA, 24-bit TTL, and 18-bit single-channel LVDS
- SATA RAID 0, 1, JBOD function support
- Complete I/O support with two SATA, IDE, PC/104-Plus and four USB 2.0
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: On board AMD Geode LX800 (500 MHz) processor
- System Chipset: AMD Geode LX800 +AMD CS5536
- BIOS: AWARD
- System Memory: One 200-pin 400/333 MHz DDR SDRAM SO-DIMM Supported
(System max. 1 GB) - Ethernet: 10/100Mbps Realtek RTL8100C chipset
- I/O Interface:
4 x USB 2.0
2 x SATA with VIA VT6421A RAID 0, 1 function support
1 x CF Type II
1 x LPT
6 x RS-232
1 x RS-422/485
1 x PS/2 for KB/MS
1 x IDE - Expansions:
1 x PC/104-Plus - Audio: Realtek ALC203 with AC’97 Codec
- Infrared Interface: 1 x Infrared interface by pin header
- Digital I/O: 8-bit digital I/O, 4 input/ 4 output by super I/O
- Super I/O: W83627EHG
- Display Interface:
VGA integrated in AMD LX800
24-bit single channel TTL
18-bit single channel LVDS - Watchdog Timer: Software programable supports 1-255 sec. system reset
- Power Supply: 12 V only, AT/ATX support
- Power Consumption: 12 V@ 0.92 A
(AMD LX800 with DDR 400 MHz, 256 MB RAM) - Temperature: Operating: 0 ~ +60°C (32 ~ 140° F)
- Humidity: Operating: 5% ~ 95%, non-condensing
- Dimensions: 165 x 115 mm
- Weight: GW: 950 g; NW: 350 g

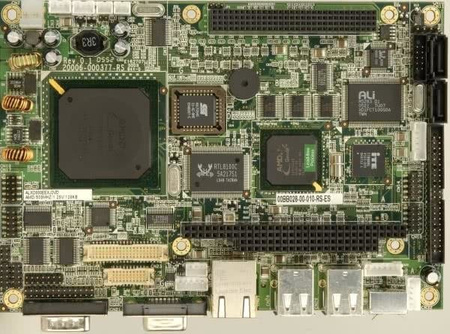

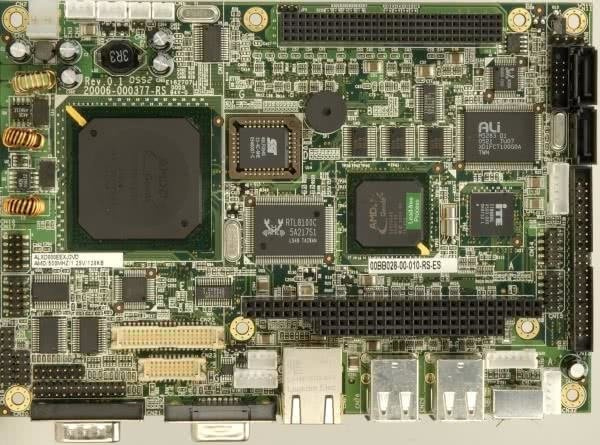

- NANO-LX-800-R12 - EPIC SBC, AMD LX800 500 MHz Processor, VGA/LVDS/TTL, LAN, SATA and Audio
- 32200-015100-RS - LPT cable
- 32100-052100-RS - ATX power cable
- 32200-026500-RS - RS-232 and RS-422/485 cable
