Features
- PXA270, 520 MHz CPU
- Windows CE.NET 5.0 Core
- InduSoft Web Studio v6.1
- Hard Real-Time Capability
- 64-bit Hardware Serial Number for Software Protection
- Audio with Microphone-In and Earphone-Out
- I/O Expansion Bus
- VGA Port Output
- Dual 10/100M Ethernet Ports
- 3 Serial Ports (RS-232/485)
- Operating Temperature: -25 ~ +75°C
- System Software
- OS: Windows CE 5.0 Core
- .Net Compact Framework: 3.5
- Embedded Service: FTP server, Web server
- SDK Provided: DLL for eVC, DLL for Visual Studio.Net 2003/2005/2008
- Multilanguage Support: English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
- CPU Module
- CPU: PXA270, 520 MHz
- SDRAM: 128 MB
- Flash: 64 MB
- EEPROM: 16 KB
- Expansion Flash: Memory microSD socket with one 2 GB microSD card
(support up to 32 GB microSDHC card) - RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
- 64-bit Hardware Serial Number: Yes, for Software Copy Protection
- Dual Watchdog Timers: Yes
- LED Indicators:
1 LED for Power and Running
2 LEDs for user programmable - Rotary Switch: Yes (0 ~ 9)
- VGA & Communication Ports
- VGA: Yes, 640 × 480 / 800 × 600
- Ethernet: RJ-45 x 2, 10/100 Base-TX
(Auto-negotiating, Auto MDI/MDI-X, LED indicators) - USB 1.1 (client): 1
- USB 1.1 (host): 1
- Audio: Microphone-In and Earphone-Out
- COM 1: RS-232 (RxD, TxD and GND); Non-isolated
- COM 2: RS-485 (Data+, Data-); 2500 Vdc isolated
- COM 3: RS-232 (RxD, TxD and GND); Non-isolated
- I/O Expansion
- I/O Expansion Bus: Yes, to mount one optional XW-Board.
- Mechanical
- Dimensions (W x L x H): 91 x 132 x 52 mm
- Installation: DIN-Rail Mounting
- Environmental
- Operating Temperature: -25 ~ +75°C
- Storage Temperature: -30 ~ +80°C
- Ambient Relative Humidity: 10 ~ 90% RH (non-condensing)
- Power
- Input Range: +10 ~ +30 Vdc
- Isolation: 1 kV
- Consumption: 6 W

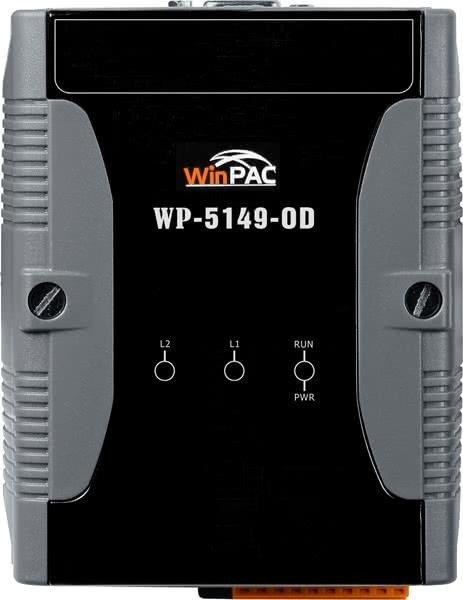

- WP-5149-OD-EN CR – InduSoft based WinPAC-5000 with Audio (English Version of OS) (RoHS)
Parametry techniczne:
| Seria: | WP-5000 |
