Features
- PICMG 1.3 with LGA1156 socket for Intel Core i7/ i5/ i3 processor
- Support dual-channel 8 GB (max.) 800/1066/1333 MHz DDR3 SDRAM
- Intel GbE LAN controller with Intel AMT 6.0 support
- Fourteen USB 2.0 ports and two COM ports
- Six SATA ports with RAID function
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: LGA1156 socket supports Intel Core i7/i5/i3 (Quad Core/Dual Core) processor
- System Chipset: Intel Q57
- BIOS: AMI BIOS
- Memory: 2 x 240-pin dual-channel DDR3 1333/1066/800 MHz up to 8 GB
- Display Output:
VGA Integrated in Intel Q57
Note: The Intel quad-core processor (e.g., i7-860 and i5-750) is a discrete processor
which does not integrate a graphics engine. If a quad-core processor is used on the
motherboard, an additional graphic card must be installed in order to support display
output. Otherwise, the display will show “No display output” when connected to the on-board
VGA port. - Ethernet:
Intel 82583V PCIe controller
Intel 82578DM with Intel AMT 6.0 supported by iEZman software UI. - I/O Interfaces:
2 x RS-232
1 x FDD
1 x LPT
1 x 6-pin wafer on board for KB/MS
14 x USB 2.0 (2 on rear side, 12 on board by pin-header)
6 x SATA II (RAID 0, 1, 5, 10) - Infrared Interface: 1 x 5-pin infrared connector
- Digital I/O: 8-bit Digital I/O (4-bit input/4-bit output)
- Audio: 7.1 channel supports dual audio streams via Realtek ALC888 audio kits
- Super I/O: ITE IT8718F
- Watchdog Timer: Software Programmable support 1~255 sec. system reset
- Fan Connector:
1 x 4-pin CPU fan connector
1 x 4-pin PCH fan connector - Power Supply: ATX Power (Support AT/ATX mode)
- Power Consumption:
3.3 V@0.89 A, 5 V@4.62 A, 12 V@0.51 A, Vcore_12V@4.35 A, 5 VSB@0.14 A
(Intel Core i5 660 3.3 GHz CPU with two 2 GB 1066 MHz DDR3) - Temperature: Operation: 0 ~ +60°C (32 ~ 140°F)
- Humidity: Operation: 5% ~ 95%, non-condensing
- Dimensions: 338 x 126 mm
- Weight: GW: 1.1kg

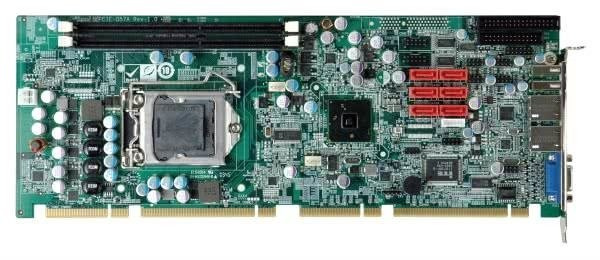

- PCIE-Q57A-R10 - PICMG 1.3 with LGA1156 socket for Intel Core processor with VGA, Dual Intel GbE, SATAII, COM, USB 2.0 and Audio, RoHS
- AC-KIT-888HD-R10 - 7.1 channel HD audio kit with Realtek ALC888 codec and dual audio streams
- 32102-000100-200-RS - SATA power cable
- 19800-000075-RS - KB/MS cable with bracket
- 32200-000017-RS - FDD flat cable
- 19800-000400-100-RS - LPT cable
- 19800-000100-200-RS - 4-port USB cable
- CF-1156A-RS - High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73 W
- CF-1156B-RS - High performance LGA1155/LGA1156 cooler kit, 95 W
Parametry techniczne:
| End of Life: | Tak |
