Features
- Full-size PICMG 1.3 graphics grade solution
- LGA1155 Intel Core i7/i5/i3/Pentium/Celeron processor supported
- Dual-channel 1333/1066 MHz DDR3/DDR3L SDRAM supported up to 16 GB
- Intel HD Graphics technology integrates high-performance graphics and media processing
- TPM V1.2 hardware secruity function supported by TPM module
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: LGA1155 socket supports Intel Core i7/i5/i3/Pentium/Celeron processor
- PCH: Intel H61
- Memory: Two 240-pin 1333/1066 MHz dual-channel DDR3 & DDR3L (1.35V) DIMMs supported
(system max. 16 GB) - BIOS: UEFI BIOS
- Graphics Engine: Intel HD Graphics Gen 6 supports for DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode - Display Output:
1 x VGA
- Ethernet: Dual Realtek RTL8111E PCIe GbE controllers (LAN1 with ASF 2.0 supported)
- Super I/O: Fintek F81866
- PCIe Switch: TI XIO3130
- PCIe-PCI Bridge: ITE IT8892E
- I/O Interface:
2 x RS-232
1 x RS-422/485
4 x SATA 3GB/s
1 x LPT
1 x FDD
1 x 6-pin wafer for KB/MS
6 x USB 2.0 (2 by Rear IO, 4 by on-board pin header)
4 x USB 2.0 (4 by backplane pin header via golden finger) - Front Panel: 1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button)
- Audio: Supports by IEI AC-KIT-888HD audio kit
- TPM: 2 x 10-pin headers
- SMBus: 1 x 4-pin wafer
- I2C: 1 x 4-pin wafer
- Infrared Interface: 1 x 5-pin header
- Expansion: PCIe signal and PCI signal via golden finger
- Watchdog Timer: Software programmable supports 1~255 sec. system reset
- Digital I/O: 8-bit programble I/O
- Fan Connector: 1 x 4-pin smart Fan Connector
- Power Supply: 5 V/12 V, AT/ATX support
- Power Consumption:
5 V@4.41 A, 12 V@0.21 A, Vcore_12 V@7.72 A, 3.3 V@1.71 A, 5 Vsb@0.16 A
(3.4 GHz Intel Core i7-2600K with two 2 GB 1333 MHz DDR3 memory) - Operating Temperature: -10 ~ +60°C
- Operating Humidity: 5 ~ 95%, non-condensing
- Dimensions: 338 x 126 mm
- Weight: GW: 1200 g/NW: 420 g

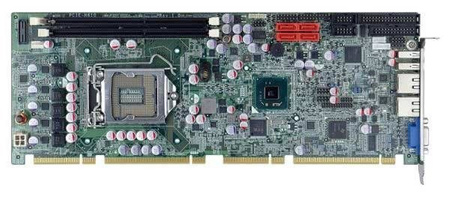

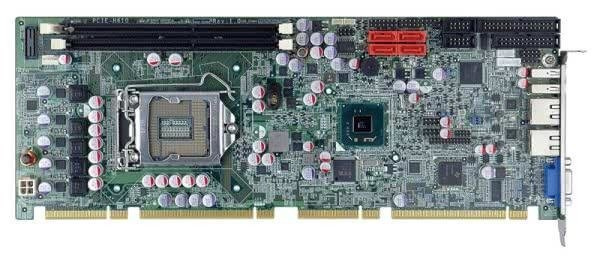

- PCIE-H610-R10 - Full-size PICMG 1.3 CPU card supports 32nm LGA1155 Intel Core i7/i5/i3 CPU with Intel H61, DDR3, VGA, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, HD Audio and RoHS
- 32205-003800-100-RS - RS-422/485 cable, 200mm
- 19800-000075-RS - KB/MS cable with bracket
- SAIDE-KIT01-R10 - SATA to IDE/CF converter board
- 32102-000100-200-RS - SATA power cable
- 32229-000100-100-RS - FDD flat cable
- 32200-015100-RS - LPT cable
- AC-KIT-888HD-R10 - 7.1 channel HD audio kit with Realtek ALC888 supports dual audio streams
- CPU-DT-i5-2500T - Intel Core i5-2500T processor, LGA1155, quad core 2.3 GHz, 6 M cache, 45 W, compatible with CF-1156C-RS CPU cooler
- CPU-DT-i5-2390T - Intel Core i5-2390T processor, LGA1155, dual core 2.7 GHz, 3 M cache, 35 W, AMT, compatible with CF-1156C-RS CPU cooler
- CPU-DT-i3-2100T - Intel Core i3-2100T processor, LGA1155, dual core 2.5 GHz, 3 M cache, 35 W, compatible with CF-1156C-RS CPU cooler
- CPU-DT-P-G620T - Intel Pentium G620T processor, LGA1155, dual core 2.2 GHz, 3 M cache, 35 W, compatible with CF-1156C-RS CPU cooler
- CPU-DT-C-G440 - Intel Celeron G440 processor, LGA1155, single core 1.6 GHz, 1 M cache, 35 W, compatible with CF-1156C-RS CPU cooler
- CF-1156A-RS-R10 - High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73 W
- CF-1156B-RS-R10 - High performance LGA1155/LGA1156 cooler kit, 95 W
- CF-1156C-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45 W
- CF-1156D-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65 W
- TPM-IN01-R11 - 20-pin Infi neon TPM module, software management tool, firmware V3.
Parametry techniczne:
| End of Life: | Tak |
