Features
- Full-size PICMG 1.3 server grade solution
- LGA1155 Intel Xeon E3/Core i3/Pentium/Celeron processors supported
- Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM
- Supports dual independent display by VGA and DVI-D
- Supports PCIe Mini expansion
- Intel PCIe GbE with Intel AMT 7.0 support
- Supports RAID function via SATA 6 Gb/s and SATA 3 Gb/s
- High-speed I/O Interface provided through the 2nd gen PCIe add-on card and SATA 6 Gb/s connectors
- TPM V1.2 hardware security provided by the TPM module
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: LGA1155 socket supports LGA1155 Intel Xeon E3/Core i3/Pentium/Celeron processor
- System Chipset: Intel C206
- Memory: Two 240-pin 1066/1333 MHz dual-channel ECC and non-ECC unbuffered DDR3 SDRAM DIMMs supported (system max.16 GB)
- BIOS: UEFI BIOS
- Graphics Engine:
Intel HD Graphics Gen 6 supports for DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode - Display Output:
1 x VGA
1 x DVI-D (via header to IO-KIT-001-R20 DVI-D/USB module) - Ethernet:
LAN1: Intel 82574L PCIe controller
LAN2: Intel 82579 PHY with Intel AMT 7.0 support - Super I/O: Fintek F81866
- I/O Interface:
2 x RS-232
1 x RS-422/485
1 x LPT
1 x FDD
2 x SATA 6 Gb/s (RAID 0/1/5/10 supported)
4 x SATA 3 Gb/s (RAID 0/1/5/10 supported)
8 x USB 2.0 (2 by rear IO, 6 by on-board pin header)
1 x 6-pin wafer for KB/MS - Front Panel: 1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)
- Audio: Supports by IEI AC-KIT-888HD audio kit
- TPM: 1 x 20-pin header
- SMBus: 1 x 4-pin wafer
- I2C: 1 x 4-pin wafer
- Infrared Interface: 1 x 5-pin header
- Expansions:
PCIe signal and PCI signal via golden finger
1 x PCIe Mini slot (with USB 1.1/2.0 signal) - Watchdog Timer: Software programmable supports 1~255 sec. system reset
- Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)
- Fan Connector:
1 x 4-pin smart Fan Connector - Power Supply: AT/ATX power supply supported
- Power Consumption:
5 V@3.98 A, 12 V@0.38 A, Vcore_12 V@7.81 A, 3.3 V@1.61 A, 5 Vsb@0.15 A
(3.4 GHz Intel Core i7-2600K with two 2 GB 1333 MHz DDR3 memory) - Operating Temperature: -10 ~ +60°C
- Operating Humidity: 5 ~ 95%, non-condensing
- Dimensions: 338 x 126 mm
- Weight: GW: 1200 g/NW: 420 g

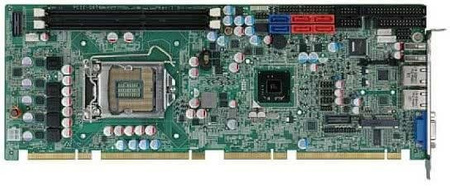

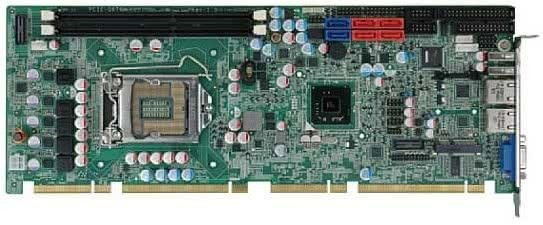

- SPCIE-C2060-DVI-R21 - Full-size PICMG 1.3 CPU card supports 32 nm LGA1155 Intel Xeon E3 and Intel Core i3/Pentium/Celeron CPU with Intel C206, DDR3, DVI-D, Dual Intel PCIe GbE, SATA 6 Gb/s, PCIe Mini, HD Audio and RoHS
- 32205-003800-100-RS - RS-422/485 cable, 200 mm
- 19800-000075-RS - KB/MS cable with bracket
- SAIDE-KIT01-R10 - SATA to IDE/CF converter board
- 32102-000100-200-RS - SATA power cable
- 32229-000100-100-RS - FDD flat cable
- 32200-015100-RS - LPT cable
- AC-KIT-888HD-R10 - 7.1 channel HD audio kit with Realtek ALC888 supports dual audio streams
- CF-1156A-RS - High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73 W
- CF-1156B-RS - High-performance LGA1155/LGA1156 cooler kit, 95 W
- CF-1156C-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45 W
- CF-1156D-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65 W
Parametry techniczne:
| End of Life: | Tak |
