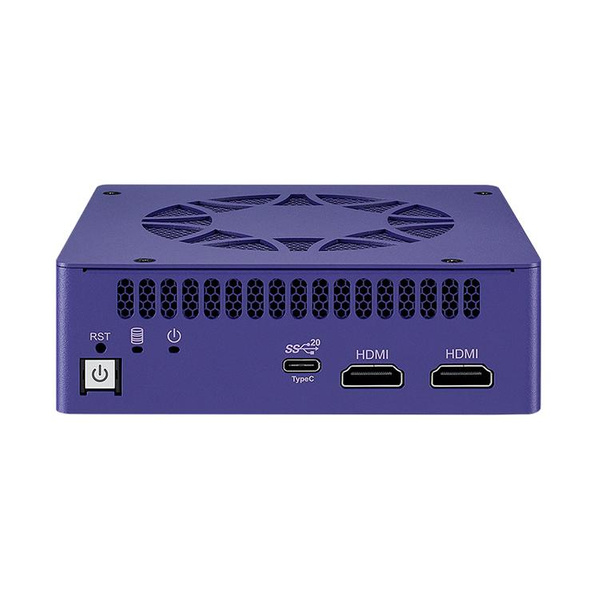

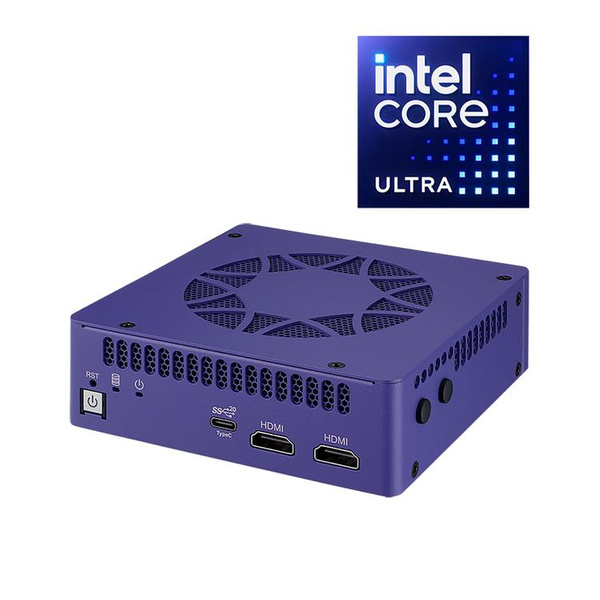

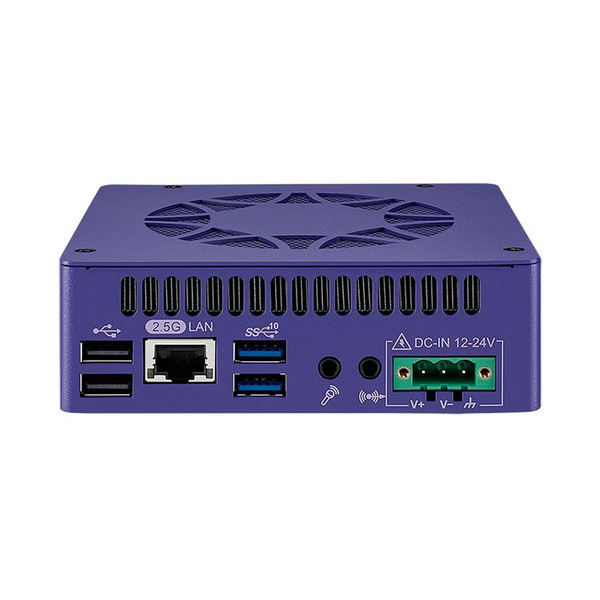

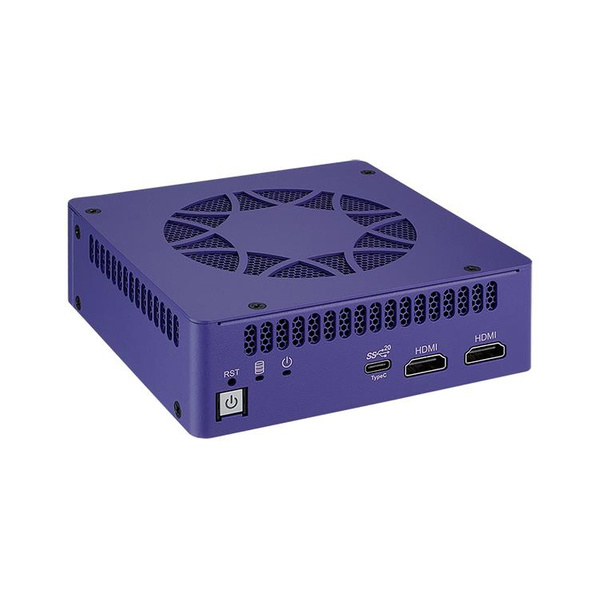

TGS-1000

  • Przemysłowa seria TGS-1000 z procesorami Intel® Core™ Ultra do AI, do 64GB DDR5, obsługa 5 wyświetlaczy. Działa w 0°C-55°C, 12-24V DC, modularna konstrukcja.
  • TGS-1000
  • TGS-1000
  • TGS-1000
  • TGS-1000

Features

    • Intel® Core™ Ultra processors feature CPU/GPU/NPU hybrid AI engines, enhancing CPU productivity by up to 14%
    • Intel® Core™ Ultra processors integrated with maximum 34 TOPS
    • Multiple HDMI and DisplayPort display interfaces support max 5 independent displays, up to 4K resolution
    • 2 USB 3.2 Gen 2, 1 USB 3.2 Gen 2x2 Type-C with DP, 2 USB 2.0, 1 2.5GigE LAN with Intel® TSN
    • 3 M.2 Socket for storage and expansion
    • Modular Design for flexible expansion: USB, Isolated DIO, COM, LAN or 4G/LTE
    • DC 12V to 24V Power Input, 0°C to 55°C operation
    • Optional VHub One-Stop AIoT Solution Service supports OpenVINO™ toolkit for AI Computing


    Feature Highlights

    Optimized AI Platform

    • Intel Core Ultra Processor features performance hybrid architecture with new AI experiences, immersive graphics, and an optimal balance of battery life and performance, delivers max 14% CPU productivity improved and up to 34 TOPS.
    • Multiple compute engines in one SoC : CPU (6 P-cores, 8 E-cores, 2 Low Power E-cores), GPU (Intel Arc GPU), and NPU (Intel AI Boost).
    • High-speed DDR5 Memory, up to 96GB
    • Intel Arc graphics supports DirectX 12.2, OpenGL 4.6, OpenCL 3.0, and Intel® Deep Learning Boost.
    • High-speed data transfer : USB 3.2 Gen 2x2 Type-C (20G), PCIe 4.0 (16GT/s), USB 3.2 Gen 2 (10G), 2.5GigE (2.5G)



    Compact Integration

    • Small Form Factor, compact size
    • DC 12V to 24V Wide Range Power Input
    • Multiple HDMI and DisplayPort, max 3 independent displays, up to 4K resolution
    • 2.5GigE LAN, 10G USB 3.2 Gen 2, USB 2.0
    • Supports Compact M.2 Key M Storage and M.2 Key E Expansion
    • Smart Manageability : Intel vPro, TCC, TSN, PXE, Wake on LAN
    • EN50155, EN50121-3-2
    • OpenVINO toolkits support 500+ AI models optimized for AI Computing


    AI Accelerating Options

    • Optional supports Compact MXM Graphics to boost performance AI and media processing workloads
    • NVIDIA Ada Lovelace/Ampere/Turing architecture supports max 9728 NVIDIA CUDA cores, 384 Tensor Cores, or 76 RT Cores, delivering max 41.15 TFLOPS peak FP32 performance
    • Intel Xe HPG microarchitecture delivers 72 TOPS AI performance
    • Compact MXM Accelerator : NVIDIA RTX A2000 Ada, NVIDIA RTX A2000, NVIDIA Quadro T1000, NVIDIA Quadro RTX 3000, NVIDIA Quadro RTX 5000, NVIDIA Quadro RTX A3500 Ada, NVIDIA Quadro RTX 5000 Ada, Intel Arc A370M



    Versatile Configurations

    • Innovative Stackable Docking design for optional expansion functions
    • TGS-101 : 16-bit GPIO
    • TGS-102 : 16-bit Isolated DIO (8 DI, 8 DO)
    • TGS-104 : 2 Isolated COM RS-232/422/485
    • TGS-105 : Dual USB 3.0
    • TGS-106 : Dual 1G LAN
    • TGS-107 : 4G Module with SIM Socket



Parametry techniczne:
System
System - Processor:
Intel® Core™ Ultra 7 165H Processor (16 Cores)
,
Intel® Core™ Ultra 5 135H Processor (14 Cores)
System - NPU:
Integrated Intel® AI Boost neural processing unit
System - Chipset:
Intel® SoC
System - GPU:
Built-in processor graphics Intel® Arc™ GPU
System - BIOS:
AMI
System - SIO:
IT8659E
System - Memory:
2 DDR5 5600MHz SO-DIMM, up to 96GB
System - OS:
Windows 11, Windows 10, Linux
I/O Interface
I/O Interface - Display:
2 HDMI 2.1 : Up to 4096 x 2304 @60Hz
,
1 DisplayPort 1.4 : Up to 3840 x 2160 @60Hz by USB Type-C
I/O Interface - USB:
2 USB 3.2 Gen 2 Type A
,
1 USB 3.2 Gen 2x2 Type C (5V/3A)
,
2 USB 2 Type A
I/O Interface - LED:
Power, HDD
Expansion
Expansion - M.2:
1 M.2 Key E Socket (2230, PCIe x1/USB)
Expansion - Docking Expansion:
2 Expansion Connector for docking module
Storage
Storage - M.2:
1 M.2 Key M Socket (2280, PCIe 4.0 x4)
,
1 M.2 Key M Socket (2242, PCIe 4.0 x4)
Audio
Audio - Audio Codec:
Realtek ALC888S-VD, 7.1 Channel HD Audio
Audio - Audio Interface:
1 Mic-in, 1 Line-out
ETHERNET
Ethernet - LAN:
Intel® I226 2.5GigE LAN supports TSN
Power
Power - Power Input:
DC 12V to 24V
Power - Power Interface:
3-pin Terminal Block:V+,V-, Frame Ground
Others
Others - Watchdog Timer:
Reset : 1 to 255 sec./min. per step
Others - HW Monitor:
Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechaniczny
Mechanical - Dimension:
117mm x 120mm x 38mm (4.61"x 4.72"x 1.49")
Mechanical - Weight:
0.9 kg (1.98 lb)
Mechanical - Mounting:
Wallmount by mounting bracket
,
VESA Mount (Optional)
,
DIN Rail Mount (Optional)
Środowisko
Environment - Operating Temperature:
0°C to 55°C (-13°F to 131°F), with air flow
Environment - Storage Temperature:
-40°C to 85°C (-40°F to 185°F)
Environment - Humidity:
5% to 95% Humidity, non-condensing
Environment - Relative Humidity:
95% @55°C
Environment - Shock/ Vibration:
IEC 61373: 2010
,
Railway Applications : Rolling Stock Equipment,
,
Shock and Vibration Tests
Environment - EMC:
CE, FCC, ICES, EN50155, EN50121-3-2
