Name: TAP200
Brand: Teltonika Networks

Karta katalogowa Pobierz

Funkcje

Wi-Fi 5: Dwu-zakresowe Wi-Fi Wave-2 802.11 b/g/n/ac
RJ45 i POE-IN: Obsługa prędkości do 1000 Mbps oraz funkcjonalność PoE-in
WYTRZYMAŁOŚĆ I ŁATWA INSTALACJA: Obudowa stabilizowana UV dla trwałego koloru z uchwytem do szybkiego montażu
ZARZĄDZANIE RMS: Darmowy dostęp do zarządzania RMS przez 24 miesiące

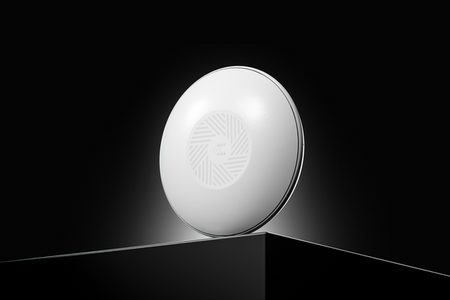

Punkt dostępowy Wi-Fi 5 Wyposażony w technologię dwuzakresową, szybki roaming oraz port RJ45 z funkcją PoE-in, Teltonika Networks TAP200 jest punktem dostępowym Wi-Fi 5, przeznaczonym do poprawy zasięgu Wi-Fi w miejscach o średniej gęstości, gdzie wysoka wydajność sieci jest kluczowa. TAP200 posiada zintegrowany uchwyt montażowy, umożliwiający szybki i łatwy montaż, oraz elegancki design, który idealnie wpasuje się w środowisko detaliczne, korporacyjne lub inne.

INTRODUCTION VIDEO

Standard package

Access Point TAP200
QSG (Quick Start Guide)
Wi-Fi Information sticker
Packaging box

*Standard package contents may differ based on standard order codes.

Parameters

Wireless

Wireless mode

802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)

Wi-Fi security

WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect

SSID/ESSID

ESSID stealth mode (Hide SSID)

Wi-Fi users

Up to 100 simultaneous connections

Wireless Connectivity Features

Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filter

Whitelist, blacklist

Wireless QR code generator

Once scanned, a user will automatically enter your network without needing to input login information.

Ethernet

1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

Network protocols

TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH

DNS over HTTPS

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Hotspot

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

Security

802.1x

Port-based network access control client

Authentication

SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator

VLAN

Tag-based VLAN separation

DATA TO SERVER

Protocol

HTTP(S), MQTT, Azure MQTT, Kinesis

Data to server

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

API

Teltonika Networks Web API (beta) support

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log

FOTA

Firmware update from server, automatic notification

SSH

SSH (v1, v2)

Receive email message status alerts of various services

JSON-RPC

Management API over HTTP/HTTPS

RMS

Teltonika Remote Management System (RMS)

System Characteristics

CPU

MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc

RAM

256 MB, DDR3

FLASH storage

16MB, SPI NOR Flash

Firmware / Configuration

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA

Update FW

RMS

Update FW/configuration for multiple devices at once

Keep settings

Update FW without losing current configuration

Factory settings reset

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating system

RutOS (OpenWrt based Linux OS)

Supported languages

Busybox shell, Lua, C, C++

Development tools

SDK package with build environment provided

GPL customization

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Package Manager

The Package Manager is a service used to install additional software on the device

Power

Connector

RJ45 Socket

Input voltage range

44.0 – 57.0 V

PoE standards

802.3af PoE Class 1

Power consumption

Idle: < 4 W / Max: < 5.5 W
