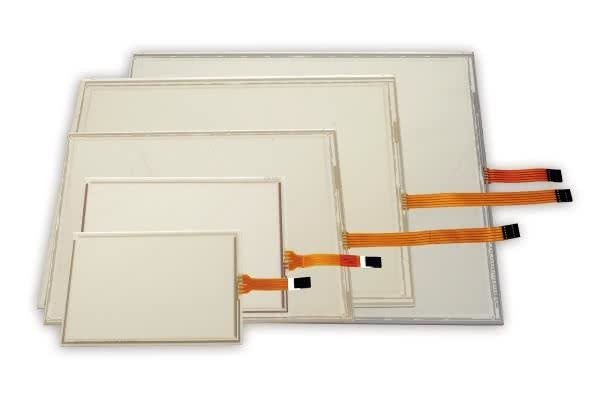

T-R104G-USB

Features

• Optical clarity: Total transmission 78 % or more
• Input through a special stylus or finger 100 g or less
• High reliability and durability in the field

Specifications

• Mechanical


• Input Method: Finger, Stylus
• Available Sizes: 10.4"


• Electrical


• Wire Type: 4-wire, 5-wire
• Position Accuracy: Less than 1.5%
• Isolation: ≧20 MΩ
• Resolution: 2048 x 2048 dpi based on controller resolution
• Activation Force: Less than 100g
• Controller Interface: USB 1.1
• Attached Cable: 6" shielded cable with USB-A connector for USB port
• Panel resistance: 5 wire resistive model: 50 ~ 200 Ω


• Optical


• Light Transmission: Anti-glare type: 78 ~ 90%


• Environmental


• Temperature:
  Operating: 0 ~ +50℃,
  Storage: -20 ~ +70℃
• Relative Humidity: 20 ~  90% R
• Electrostatic Protection: 30 kV (Contact/ Air)


• Durability


• Surface Hardness: 3H and above per JIS K5400
• Life (Hitting): More than 10 million hits
• Life (Drawing): More than 300 k alphabets


• Operation System Compatibility


• Windows Series:
  Windows XP/XP Embedded / XP tablet edition
  Windows 2000, Windows ME, Windows 95/98,
  Windows NT 4.0, Windows CE 2.12/3.0/.Net /5.0
• Linux: Mandrake, Red-Hat
• Mac/OS 9 & X

Ordering Information

• T-R104G-USB - 10.4" Resistive LCD Touch Screen with 5-Wire Sensor and USB Interface
  (IEI Products: DM-104GS, LCD-KIT104G)
