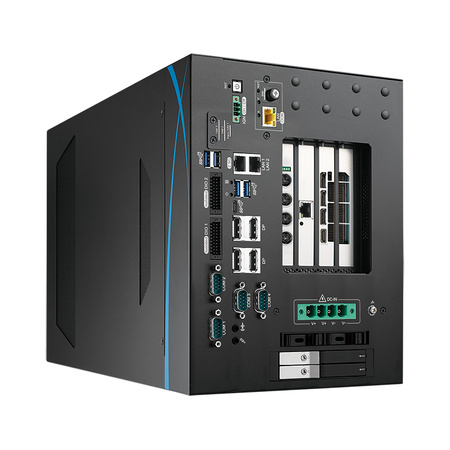

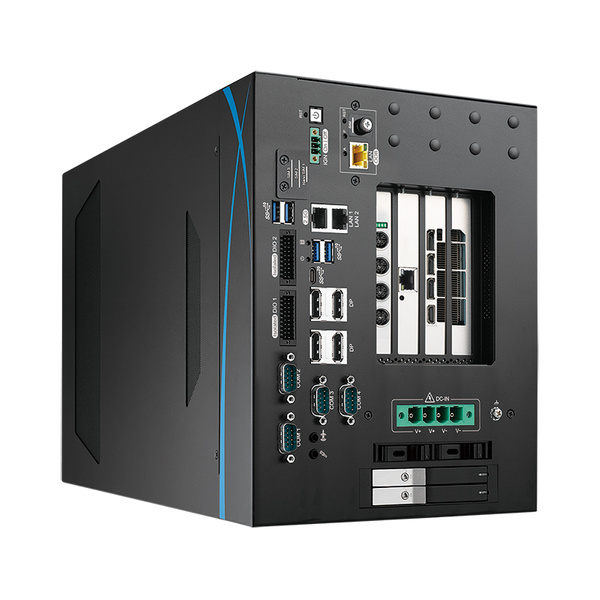

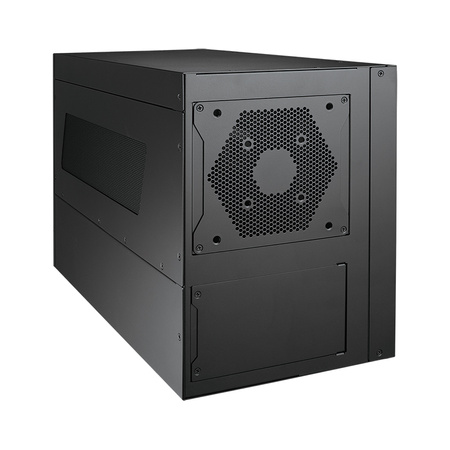

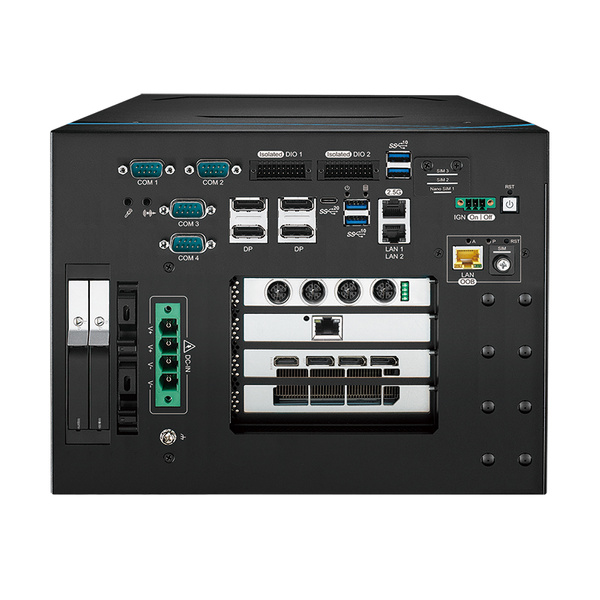

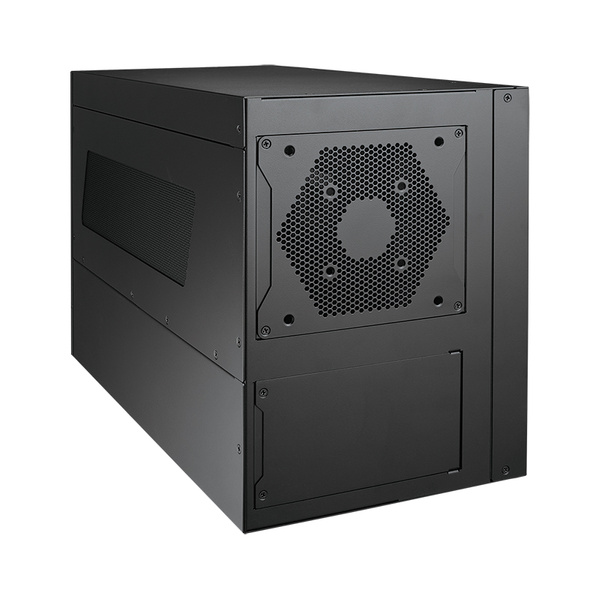

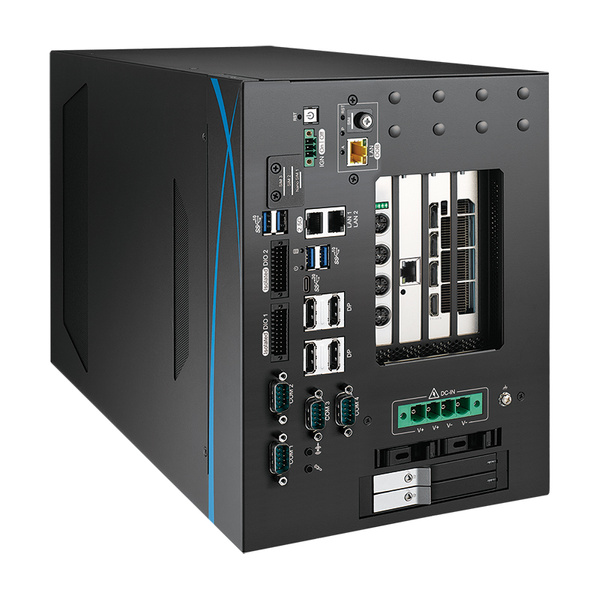

RCX-3430 PEG - Rozszerzalny BOX PC

  • Przemysłowy, rozszerzalny BOX PC, Intel® Core™ i9/i7/i5/i3 12/13/14Gen., Intel® R680E, do 128GB DDR5, 1x PCIe x16 (sig. x16, 4.0), 2x PCIe x16 (sig. x4), COM, SIM, M.2, DP, 4x SATA, 2x 2.5GbE LAN, 16V~50V DC, -25°C ~ 45°C, EN50155, EN50121-3-2, IEC 61373
  • RCX-3430 PEG - Rozszerzalny BOX PC
  • RCX-3430 PEG - Rozszerzalny BOX PC
  • RCX-3430 PEG - Rozszerzalny BOX PC
  • RCX-3430 PEG - Rozszerzalny BOX PC
Producent: Vecow
Kod produktu: RCX-3430 PEG
Gwarancja: Gwarancja 24 miesiące

The Vecow RCX-3000 PEG is an Expandable GPU-accelerated System powered by Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) Processor. The RCX-3000 PEG provides scalability with support for up to 7 PCIe expansions, making it capable of supporting a max 1800W power budget for dual 900W NVIDIA or AMD 2-slot full-length graphics card for AI and inferencing. Additionally, the RCX-3000 PEG offers rich I/O, including 2 GigE LAN with TSN, 4 USB 3.2 Gen 2, 4 COM, 32 Isolated DIO, 3 SIM card sockets, 1 Mini PCIe socket and provides 4 SATA for 2.5” SSD/HDD Tray. It also provides 2 front-access M.2 Key M SSD Trays for data storage. For industrial deployments, it features operating temperature range from -25°C to 45°C, and flexible power input options ranging from DC 16V to 50 and AC 90V to 220V.

Cechy

      • Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® R680E PCH supports max 65W TDP CPU
      • Supports one 900W NVIDIA® or AMD 2-slot full-length graphics card
      • Flexible Power Input Design with Software Ignition Control : DC 16V to 50V
      • Up to 4 Slot PCIe expansions with PCIe 4.0 x16 and PCIe x4 signals
      • 2 Front-access M.2 and 2 2.5" SSD Tray, multiple 5G/WiFi/4G/LTE/GPRS/UMTS
      • 4 DisplayPort up to 4K resolution, USB 3.2 Gen 2x2 Type C with a max speed of 20Gbps data transfer supported, 2 Independent 2.5G LAN with Intel® TSN
      • Support remote devices Out-Of-Band management functions powered by Allxon


Feature Highlights

High-performance AI Inference Platform

  • Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel R680E PCH, max 24-core 65W TDP 5.2GHz CPU supported
  • 4 DDR5 Memory, up to 128GB, optional supports ECC
  • Supports performance hybrid architecture and advanced AI capabilities for smarter and faster applications
  • Intel UHD Graphics 770 supports DirectX 12, OpenGL 4.5, OpenCL 3.0
  • Optional delivers outstanding AI computing productivity supporting max 10752 CUDA Cores, 84 RT Cores, and 336 Tensor Cores, delivers 75.6 TFLOPS RT Core performance, and 309.7 TFLOPS Tensor performance
  • High-speed data transfer : PCIe 4.0 (16GT/s), USB 3.2 Gen 2x2 Type-C (20G), USB 3.2 Gen 2 (10G), SATA III (6G), 2.5GigE LAN (2.5G), GigE LAN (1G)



Advanced Integration

      • Fully supports 3-slot, 2-slot, single-slot & full-length discrete graphics card
      • Intel Deep Learning Boost for accelerated AI performance
      • Intel Turbo Boost Technology 2.0 accelerates processor performance on peak loads
      • Supports Intel vPro, TPM 2.0, PXE, Wake on LAN for remote control
      • Supports TSN and Intel TCC for real-time control
      • Fully supports Intel OpenVINO toolkit for AI Computing
      • Optional supports remote device Out-Of-Band management functions powered by Allxon



Flexible Configuration

      • Flexible product configuration for project requirements
      • Max 7 PCIe expansions : PCIe 4.0 x16, PCIe x8, PCIe x4
      • PCIe expansions for multiple 10GigE M12 PoE+ LAN, 10GigE PoE+ LAN, 10GigE LAN, 10G SFP+, 2.5GigE PoE+ LAN, 2.5GigE LAN, 100W PoE++, M12 PoE+ LAN, PoE+ LAN, GigE LAN, LAN Switch, USB, or Discrete Graphics
      • Max 1800W power budget optional supports levels of full-length discrete graphics, max 10752 CUDA Core Computing
      • Multiple compact M.2 Key B, M.2 Key E, M.2 Key M connections for Storage and Expansion
      • Flexible Wide Range Power options : DC 16V to 50 Power Input or AC 90V to 240V Power Input



Industrial Optimization

      • EN50155 & EN50121-3-2 compliant
      • ICE 61373 : Anti-shock, Anti-vibration
      • Dual high-reliable Intel 2.5GigE LAN support TSN
      • Trusted longevity supports
      • Wide range power input facilitates indoor, outdoor, and even in-vehicle operating environments
      • 16-mode SW Ignition Power Control benefits for in-vehicle operation
      • 32 Isolated DIO, 4 COM RS-232/422/485
      • 3 External SIM sockets supports always-on 5G/WiFi/BT/4G/LTE/GPRS/UMTS Wireless Communication
      • Remote Power Switch



Specyfikacja

System
Processor
- 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh)
- 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
- 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
Chipset Intel® R680E
BIOS AMI
SIO IT8786E
Memory 4 DDR5 4800MHz UDIMM, up to 128GB (ECC/Non-ECC)
OS Windows 10/11, Linux
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8kV)
USB
- 4 USB 3.2 Gen 2 Type A
- 1 USB 3.2 Gen 2x2 Type C (5V/3A)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED HDD, Power, OOB
SIM Card  3 External SIM Card Sockets
Expansion
Mini PCIe 1 Mini PCIe Socket for PCIe/USB/SIM Card
PCIe
- 1 PCIe x16 Slot with PCIe 4.0 x16 Signal
- 2 PCIe x16 Slot with PCIe x4 Signal
M.2
- 2 M.2 Key B Socket (2280/3042/3052, PCIe x2/USB3(Default)/USB2)
- 1 M.2 Key E Socket (2230, PCIe x1/USB)
Graphics
Graphics Processor Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture
Interface 4 Independent displays : 4 DisplayPort, up to 4096 x 2304 @60Hz
Storage
SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
M.2 2 Front-access M.2 Key M SSD Tray (2280, PCIe x4)
Storage Device
- 2 Front-access 2.5" SSD/HDD Tray
- 2 Internal Bracket 2.5" SSD/HDD
Audio
Audio Codec Realtek® ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I226 2.5GigE LAN supports TSN
LAN 2 Intel® I226 2.5GigE LAN supports TSN
Power
Power Input DC 16V to 50V
Power Interface 4-pin Terminal Block : V+, V+, V-, V-
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block
Out-of-Band Management
MCU Nuvoton NUC980
Interface OOB LAN, 10/100Mb Ethernet LAN, RJ45 Connector
Remote Management Support Remote Power ON/OFF, Reset and Power Cycling
Others
TPM Infineon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension  206mm x 269mm 398mm (8.11"x 10.59"x 15.67")
Weight 8.6 kg (18.96lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temp. -25°C to 45°C (-13°F to 113°F)
Storage Temp. -25°C to 85°C (-13°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative humidity 95% @45°C
Shock/Vibration
- IEC 61373 : 2010
- Railway Applications : Rolling Stock Equipment, Shock and Vibration Tests
EMC CE, FCC, EN50155, EN50121-3-2
