cPCI-6940DX/D1577/M16-0 – karta CompactPCI

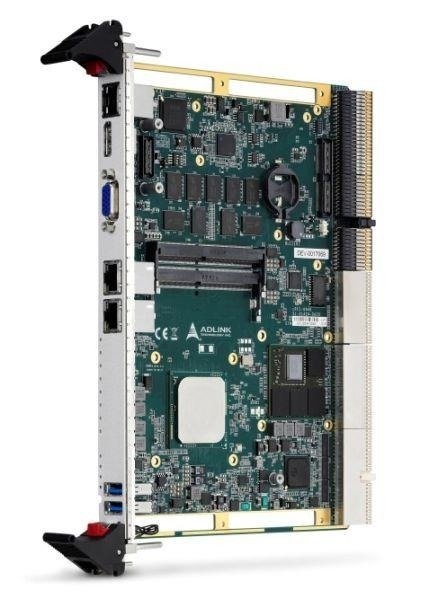

The ADLINK cPCI-6940 Series is a 6U CompactPCI processor blade featuring the latest server class 14nm Intel® Xeon® Processor D-1500 family SoC (formerly "Broadwell-DE") with up to 16-cores and 16GB DDR4-2133 ECC soldered memory plus 2x SODIMM supporting up to 32GB of DDR4-2133 ECC socket type memory (total of up to 48GB) that is ideal for applications requiring high performance or virtualization capabilities. With the latest 14nm processor technology, the cPCI-6940 boosts computing power and supports the most demanding server and workstation applications. Graphics is enhanced by an onboard AMD Embedded Radeon™ E8860 GPU to provide parallel computing power and an improved graphics experience. The cPCI-6940 Series is a 6U CompactPCI blade in single/dual-slot (4/8HP) width form factor. Front panel I/O for the 4HP cPCI-6940 includes 2x GbE, 1x DisplayPort and 1x VGA, 2x USB 3.0 ports and 1x DB-9 COM port. The 8HP cPCI-6940D provides flexibility to have two 10G SFP+ ports, additional hard drive space and XMC expansion space. Rear I/O signals include two GbE for PICMG 2.16, 2x DVI-I, 1x VGA (switched from front), 4x USB 2.0 and 2 USB 3.0, PS/2 keyboard/mouse, 3x COM, HD Audio, and 4x SATA. ADLINK also provides a rich selection of rear transition modules (RTM) for customers to choose from according to their application needs. Storage options include SATA 6Gb/s direct connectors to support up to two 2.5" SATA drives. For expansion, the cPCI-6940 is equipped with one PCIe x4 Gen2 to J5 and PCIe x16 Gen3 to J4 through optional UHM (shared with PCIe x8 XMC on layer 2). The cPCI-6940 Series offers outstanding performance provided by the Intel® Xeon® Processor D-1500 family and is an ideal solution for military or other computing demanding applications that require better value per watt computing power as well as providing higher flexibility with support for operation in peripheral slots in satellite mode.

Cechy

• Wielordzeniowy procesor z rodziny Intel® Xeon® D-1500 14nm ("Broadwell-DE")
• 16GB wlutowanej pamięci DDR4-2133 ECC, do 32GB DDR4-2133 ECC pamięci SODIMM, maksymalnie 48GB
• Zintegrowany AMD Radeon™ E8860 GPU z obsługą DirectX 11.1, Open GL 4.2, Open CL 1.2
• Dwa porty 10G SFP+ na przednim panelu (wersje 8HP)
• Złącze PCIe x16 do J4 UHM dla tylnych rozszerzeń
• Rozszerzony zakres temperatur z procesorami serwerowymi Xeon®
