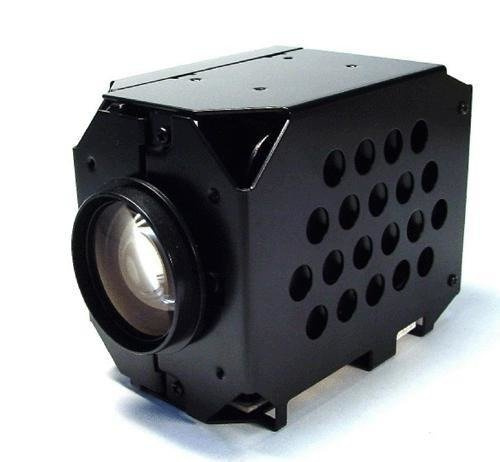

Moduł kamery (bez obudowy) analogowej z wbudowanym obiektywem zoom optyczny x26, zoom cyfrowy x10 (razem x260); interfejs do sterowania funkcjami kamery RS-232 lub RS-485
Dane techniczne
|
Image Sensor:
|
1/4-inch CCD Image Sensor
|
|
CCD Total Pixels:
|
542(H) X 493(V)
|
|
Resolution:
|
400TVL
|
|
S/N ratio:
|
52dB (min) / 65dB (typ) (AGC OFF, r=1, APC OFF, Y-OUT)
|
|
Minimum Illumination Typical:
|
1 Lux F1.6
|
|
Minimum Illumination Star light Mode:
|
0.03 Lux F1.6
|
|
DNR (Digital Noise Reduce):
|
S/N UP 4.5dB
|
|
Lens:
|
26X optical ZOOM LENS, F1.6~3.8, f=3.5~91.0mm
|
|
Zoom:
|
260X (26X optical 10Xdigital)
|
|
Image negative:
|
Select by OSD menu
|
|
Cross line:
|
ON/OFF Select by OSD menu (position adj. by software)
|
|
Freeze function:
|
Alarm in trigger or Select by OSD
|
|
Motion Detect:
|
48 zone (select by OSD)
|
|
Electronic Shutter:
|
AES: 1/60(1/50) ~ 1/120,000 sec. / MANUAL: 8 step
|
|
White Balance:
|
ATW / AWC / FIX
|
|
White Balance Range:
|
3200 ~ 9600 ºK
|
|
GAMMA CORRECTION:
|
0.45 /1
|
|
CONTROL FUNCTION:
|
OSD control, Dry Switch, RS-232C/RS-485 (selectable)
|
|
ICR FUNCTION:
|
Super BLC,48 zone BLC
|
|
B.L.C. Function:
|
AUTO (18dB max)
|
|
AGC:
|
AUTO / FIX
|
|
ALC:
|
---
|
|
Power Supply:
|
DC12V±1V / 4W (max)
|
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
