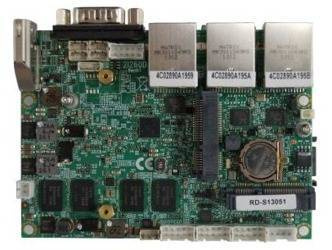

2I268HW

Komputer jednopłytkowy 2.5" z Intel Atom N2600 1.6 GHz, 2 GB DDR3 SDRAM, VGA/LVDS/DVI-D/HDMI, 1x GbE, 2x RS-232/422/485, 5x USB 2.0, 1x SATA i HD-audio (-20 ~ +70°C); zasilanie 9 ~ 36 Vdc

Specifications

• CPU Type: Intel dual-core Cedar view-M N2600 1.6 GHz, TDP 3.5 W
• MB Chipset: Intel Cedar view-M and NM10
• Graphics:
  Intel Cedar view-M Integrated Graphics chipset,
  400 MHz render clock frequence
  Support Directx* 9 compliant Pixel Shader* v2.0 and OGL 3.0
• System Memory: On board DDR3 SDRAM 2 GB, data transfer rate of 800 MT/s
• SSD Storage:
  mSATA: Yes
  On Board SSD: Optional
• VGA: Yes (Internal)
• LVDS: Single channel 18 bits
• Touch: USB interface Touch Screen controller
• DVI/HDMI: DVI & HDMI (Internal)
• Ethernet: 1x Realtek GbE
• Audio: Line-out / Mic-in (Internal)
• Mini-PCIe:
  Slot 1: (Full size) PCIe / USB
  SLot 2: (Full size) mSATA / USB
• SIM Card Holder: Optional
• SATA: 1
• USB: 5x USB 2.0 (internal)
• Serial IO: 2x RS-232 (internal) optional to RS-422/485
• GPIO: 4x DI / 4x DO (internal)
• WDT: Yes
• PS2 KB/MS: Internal
• Power Input: Wide Range DC IN +9 ~ +36 V
• Dimension: 102 x 73 mm (2.5 inch)
• Operation Temperature: -20 ~ +70°C
• Operation Humidity: 5 ~ 95%, non-condensing
• Expansion: GPS, IEEE1394, 3G/4G, Bluetooth, WI-FI, I/O
• Chassis:
  Box PC: SHARK Series Waterproof System
  Panel PC: SHARK Series-10.1", 13.3" (Waterproof PPC)
  STAR Series-10.4", 12.1", 15"
  Waterproof Box PC: SHARK-10.1", 13.3"

Ordering Information

• 2I286HW - 2.5" SBC with dual-core Intel Atom N2600 1.6 GHz CPU, 2 GB DDR3 SDRAM and VGA/DVI-D/HDMI, 1x GbE, 1x RS-232/422/485, 3x USB 2.0, 1x SATA and HD-audio interface (-20 ~ +70°C); 9 ~ 36 Vdc power
