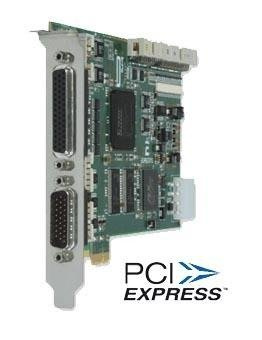

Domino Symphony PCIe

Domino Symphony PCIe- bardzo szybka karta PCI Express (PCIe) akwizycji obrazów (framegrabber) dla 4 kamer single-tap.

The Domino Symphony and Domino Symphony PCIe are high-speed analog frame grabbers. They provide affordable image acquisition for applications with multiple monochrome cameras.
Image acquisition from a monochome camera with a perfect digital quality

Features:

• Domino series general features
• Four single-tap cameras
• 10-bit 65 MHz A/D converters Four 8- or 10-bit LUTs
• 64-Mbyte on-board memory
• Form factor: PCI Express Full-height, half-length, x1
• MultiCam drivers for Microsoft WindowsR and Linux

Camera support
Four single-tap cameras including high-speed high-resolution cameras

Performance:
Sustained 30 fps acquisition of 8-bit 1.2 Megapixels images on 4 channels concurrently!

Video and Power connectors:

• One HD44 video connectors on the bracket
• One internal 10-pin header video connector
• One Molex 4-pin connector for camera power supply

Rich set of I/O lines

Connector name	Type of connector	I/O lines
System IO connectors on the bracket	One HD26 system connector	4 opto-isolated output lines for safe control of external equipment
System IO connectors Internal	One 26-pin header	4 differential LVDS input lines for high-speed, robust and flexible control from external equipment 4 digital TTL I/O lines for general purpose control
Factory IO connector Internal	One 34-pin header	4 contact-closure inputs 12 solid-state outputs
Camera COM connector exposed to the OS as standard COM ports	One 16-pin header	4 RS232 asynchronous serial communication lines to control the cameras

Form factor
Domino Symphony PCIe: 1-lane PCI Express
