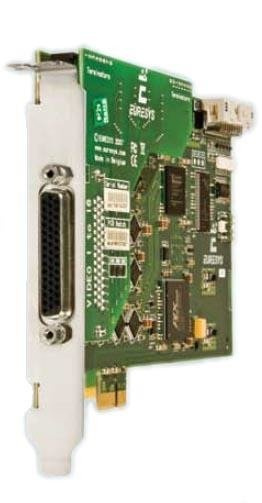

Picolo Alert Compact - ultra-szybka wielokanałowa karta PCI Express (PCIe) akwizycji obrazu (framegrabber) do zastosowań w profesjonalnym monitoringu wideo (CCTV - video surveillance) z pojedynczym złączem do 16 kamer podłączanych za pomocą kabla - spider cable
Equipped with the Euresys video-surveillance FPGA, they are able to acquire images from up to sixteen independent cameras with a total digitizing power of 200 / 240 fps constantly available. The user is free to share this digitizing power between the sixteen channels, according to the requirements of the application.
Features:
As a unique feature, the Alert offers the ability to share a total digitizing power of 200 / 240 fields per second (100 / 120 ips) among the sixteen video channels without switching delay. With the dedicated Euresys video-surveillance FPGA, this high acquisition rate is always fully available independently of the camera synchronization type.
Nine professional I/O lines and a configurable hardware watchdog
On an internal 20-pin header:
4 professional input lines
Contact-closure inputs that can be directly connected to:
5 professional output lines
Solid-state relay outputs that can be directly connected to:
Direct connection to various kinds of devices like trigger, strobe, interface to alarm systems, etc.
Not sensitive to polarity
Video input connections
16 video inputs compatible with the Picolo Tymo HD-44 connector. Connection through spider cable.
Spider cable
A Spider Cable equipped with an HD44M connector and 16 BNC is available separately on request for a straightforward evaluation of the board
Equipped with the Euresys video-surveillance FPGA, they are able to acquire images from up to sixteen independent cameras with a total digitizing power of 200 / 240 fps constantly available. The user is free to share this digitizing power between the sixteen channels, according to the requirements of the application.
Features:
- Picolo series general features
- 16 video inputs - 200 / 240 fps constantly available
- Proprietary video-surveillance FPGA
- Simultaneous capture and preview functions
- Form factors: Conventional PCI
- 64 / 32 bits, 66 / 33 MHz, 3V or 5V signaling
- Software support:
- MultiCam drivers for Microsoft WindowsR and Linux
As a unique feature, the Alert offers the ability to share a total digitizing power of 200 / 240 fields per second (100 / 120 ips) among the sixteen video channels without switching delay. With the dedicated Euresys video-surveillance FPGA, this high acquisition rate is always fully available independently of the camera synchronization type.
| NTSC cameras | 4-camera configuration | 16-camera configuration | ||
| board/camera | /board | /camera | /board | /camera |
| Cif/s or Field/s | 240 | 60 | 240 | 15 |
| Image/sec | 120 | 30 | 120 | 7,5 |
| NTSC cameras | 4-camera configuration | 16-camera configuration | ||
| board/camera | /board | /camera | /board | /camera |
| Cif/s or Field/s | 200 | 50 | 200 | 12,5 |
| Image/sec | 100 | 25 | 100 | 6,25 |
Nine professional I/O lines and a configurable hardware watchdog
On an internal 20-pin header:
4 professional input lines
Contact-closure inputs that can be directly connected to:
- Switches
- 5V or TTL output
- Relays
- 12V or 24V output
- Opto-coupled devices
5 professional output lines
Solid-state relay outputs that can be directly connected to:
- Relays
- TTL inputs with pull-up or pull-down resistor
- Opto-coupled devices
Direct connection to various kinds of devices like trigger, strobe, interface to alarm systems, etc.
Not sensitive to polarity
Video input connections
16 video inputs compatible with the Picolo Tymo HD-44 connector. Connection through spider cable.
Spider cable
A Spider Cable equipped with an HD44M connector and 16 BNC is available separately on request for a straightforward evaluation of the board
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
