GrabLink Value

Grablink Value

Affordable Image Acquisition from Digital Camera Link Camera

Features:

• Support of one line or area-scan Camera Link camera in base configuration
• Acquisition : up to 24 bits @ maximum 66MHz
• One DB9 connector for trigger and strobe lines
• 16-Mbyte frame buffer
• Libraries, ActiveX controls and DLLs included

General information:

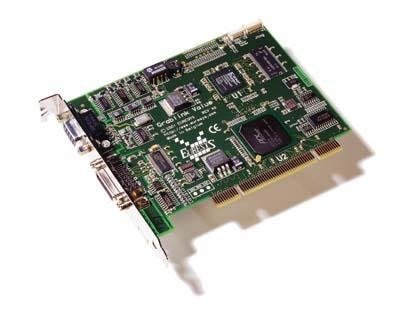

The Euresys Grablink Value is an affordable PCI Camera Link frame grabber for cost-effective industrial applications. Following the base configuration of the standard, Grablink Value acquires images from one Camera Link compliant camera, single-tap (8 to 16 bits), dual-tap (8 to12 bits) or RGB (3 x 8 bits). Featured for industrial applications such as inspection of high-speed moving objects, web inspection or high-resolution acquisition, Grablink Value provides a perfect control of line-scan and area-scan cameras, thanks to its system connector. GRABLINK comes with the MultiCam driver, which drastically simplifies its integration into your machine vision application.
