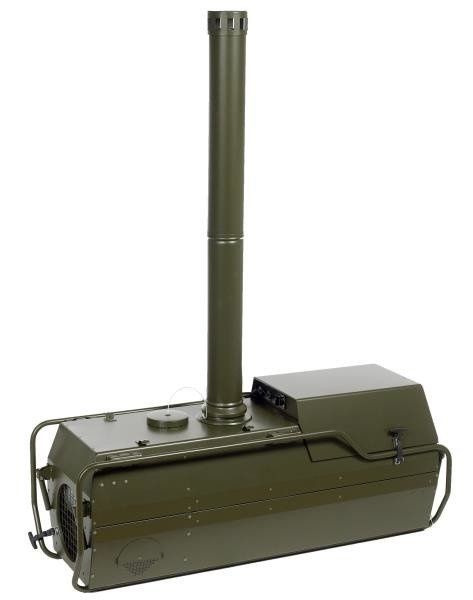

VAM 15 MK II

Function

The VAM 15 MK II Warm Air Heater is a transportable unit, developed primarily to provide heating in tents or temporary, transportable buildings. The unit is designed to be placed outside the tent, with supply and return air ducted to the tent.

The VAM 15 MK II heater operates on the in-direct fired (clean air) principle thus insuring that no combustion products or fumes are introduced into the occupied spaces. The forced air system provides for the most rapid warm-up capability.

The VAM 15 MK II heater is essentially self-contained, requiring only a source of external electric power and fuel. The unit will operate effectively on all diesel fuels. Appropriate fuels are supplied by the fuel hose assembly which may be connected to external jerry cans or drums.

Features

• Cabinet made of 0,9 mm galvanized, powder coated steel sheet.
• Top finish painting standard NATO green, RAL 6014.
• Circular openings (Ø225 mm) for one supply and one return air hoses.
• Operation with or without return air hoses fitted.
• Adjustable fresh air intake from 0 to 40% of the total air volume.
• Cold start at temperatures down to –40°C.
• All necessary safety devices built in for protection and complete shut down in case of malfunction.
• When storing or transporting the heater, the flue is fitted onto the unit.
• Fitted with handles so that it can be carried manually by two persons.
• Fuel supply from jerry can or oil drum, with a fuel supply lance for jerry can as standard.
• Connect to the mains power supply or a separate diesel generator through a 15 m power cable with CEE plug.
• Controlled by an optional remote thermostat which will be placed inside the tent.
• Possibility for optional running the unit with a CO monitor.
• Allowing ventilation without heating.
• Highly efficient
• Built according to EN 13842 and CE-marked.

Technical Data

• Nato Stock Number: 4520-22-613-3506
• Operating range:  -40 ~ +25°C
• Heat output: 18.6 kW
• Efficiency: >85%
• Air flow @ 150 / 0 Pa: 685 / 1080 m3/h
• Fresh air volumen: 0 - 300 m3/h
• Fuel consumption, max.: 2,0 l/h
• Current consumption, max.: 4,5 A
• Power consumption: 0,8 kW
• Power supply: 1x230  V / 50 Hz

• Air discharge temperature, max.: 80 °C
• Hose connection: Ø 225 mm
• Noise level: 60 dB(A)
• Weight: 93 kg

Optional Accessories

• Remote thermostat with cable, 15 m
• Remote CO monitor with cable, 15 m
• Insulated, flexible hose, Ø225x3000 mm with spigot
• Storage bag for flexible hose Ø225 mm
• Air distribution hose, Ø225x6000 mm
• Alternatively oil lance for oil drum
