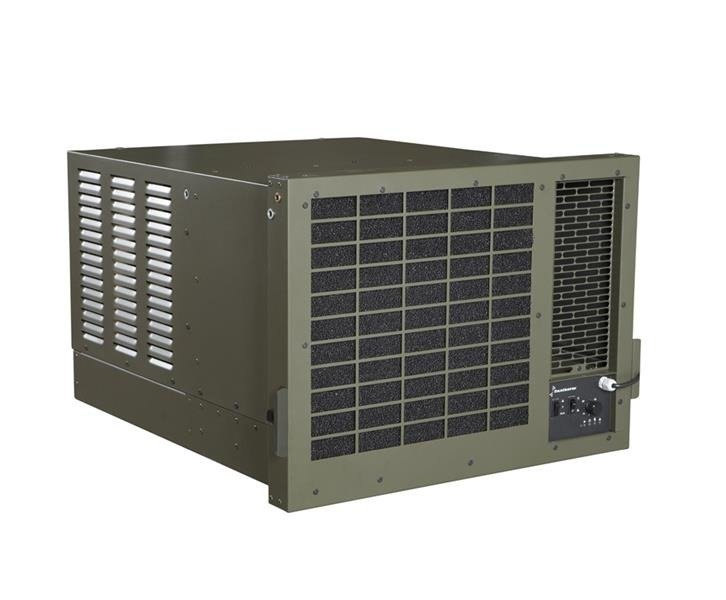

ACM 5 MK II - Klimatyzator do kontenera

ACM 5 MK II to urządzenie klimatyzujące do montażu w kontenerach ISO. Posiada drzwiczki zabezpieczające od zewnątrz i możliwość zamontowania opcjonalnej nagrzewnicy. Ulepszona wersja ACM 5

FUNCTION

The ACM 5 MK II is designed for window mounting in ISO containers. Together with the trap door system the air conditioner is mounted inside the container. It is designed to store within the confinement of the ISO corners of the container during transportation, or storage. The ACM 5 MK II is sliding in its trap door system and is deployed from the container for operation. Once deployed the unit is locked from inside the container when operating.

The function of the ACM 5 MK II is based on a cooling circuit with two powerful fans. The evaporator (inside the container) section contains the evaporator core and a radial fan, which cycles the warm internal air from the shelter through the cold evaporator core and expels the cooled air through the discharge grill. The condenser (outside the container) section contains the condenser core and an axial fan, which is moving the heat from the internal air to the outside atmosphere. The condenser circuit is not filtered. Instead of filtering this air path, sand and debris entering the unit will be expelled through holes in the bottom of the ACM 5 MK II. This means low maintenance.

FEATURES

• The ACM 5 MK II is manufactured from hot dip galvanized and powder coated steel sheet.
• ACM 5 MK II and trap door is a 100% bolt-on upgrade for customers already using the ACM 5.
• No fresh air intake, as to qualify CBRN/COLPRO compliance.
• When in operation and transportation mode the trap door and ACM 5 MK II provides an air tight boundary to ambient environment.
• The above qualifies for CBRN/COLPRO compatibility
• The trap door unit also serves as protection against rain and extreme sun when the unit is operating.
• NATO green, IR reflective, BS381C285. Optional colors on request.
• Provides cooling at ambient temperatures up to + 60°C.
• Scroll compressor for high degree of reliability and low noise level.
• Environment-friendly R134a refrigerant.
• 5 kW cooling standard.
• 2 kW heating standard.
• Safety high pressure switch to prevent over pressure.
• Easy to operate micro processor to control temperature and comply with EMC military standard.
• No external room thermostat. Only cable exiting the unit is main 230V.
• Two speed selector for the internal fan.
• “VENT-only” option, allowing air circulation without cooling or heating.
• PPI 15 filtering recirculated air, within the shelter.
• Easy mounting into the trap door system, by means of a forklift or crane
• During transport the ACM 5 MK II is stored safely, bolted to the trap door within the ISO corners of container.
• Possibility to lock the trapdoor with a padlock or positively lock the trapdoor for under-slung transportation by helicopter.
• CE-marked
• ACM 5 MK II and trap door setup complies with Def Stan 59-411 Land Class C.

ACCESSORIES

• Trap door unit, containing trap door and mounting kit for ACM 5 MK II
• Welding frame for corrugated container. (Same as ACM 5)
