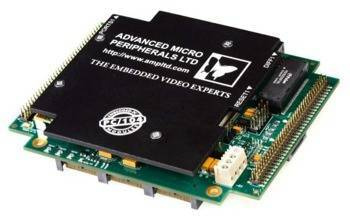

Komputer jednopłytkowy PCI/104-Express z procesorem Freescale MPC8377E PowerQUICC II Pro 667 MHz, 512 MB DDR2, 2 GB SSD, 1 x RS-232, 1 x RS-422/485, 1 x USB 2.0, 1 x LPT, 2 x GbE, 1 x IDE, 1 x SATA-2 i audio (-40 ~ +85°C)
Features
Features
- Fan-less, conduction cooled operation
- 667 MHz Freescale MPC8377E PowerQUICC II processor
- Based on e300 PowerPC core
- Up to 2 Gbytes high speed 400 MHz DDR memory (soldered)
- Dual integrated Gigabit Ethernet ports
- On board 2 Gbyte solid state storage (soldered)
- Integrated security encryption accelerator
- Standard SATA I/II compatible interface
- Standard SD card interface / connector
- PCI/104-Express module offering four x1 PCIe links (500 Mbytes./sec per link)
- 32 bit PCI expansion via standard PCI-104 expansion connector and mini PCI port
- Two serial ports (RS-232 and RS-422/485)
- USB 2.0 host/device port
- Available in extended temperature option
- Standard PCI/104-Express form factor with I/O extensions (3.7 x 4.0 in)
- Processor
- MPC8377E PowerQUICC II Pro Processor
- e300c4s core (32 KB I-cache and 32 KB D-cache)
- One floating point unit & wwo integer units
- 133 MHz 32-bit local bus
- Integrated power management controller
- Optional encryption acceleration engine
- Main Memory
- Soldered 512 MBytes DDR2 SDRAM (Up to 1 GB)
- Support for up to 400-MHz data rate
- Support for up to 32 simultaneous open pages
- On-the-fly power management using CKE
- On-board Storage
- Soldered PATA NANDrive 2 GB (Up to 4 GB)
- On SATA interface through SATA-PATA converter
- Network
- Two Gigabit Ethernet ports
- 10/100/1000 Auto-negotiation
- RGMII PHY 88E1111-B2
- Support for Wake-on-Magic Packet
- Peripherals
- Standard SATA I/II compatible interface
- 1 x RS-232
- 1 x RS-422/485 serial ports
- Mini-AB USB 2.0 Port
- Enhanced Secured Digital Host Controller
- PCI/104-Express Bus
- Stackable 156-pin PCIe bus connector
- Four PCI Express x1 Lanes
- SMBus
- PCI-104 Bus
- 133 MB/sec bus bandwidth
- PCI-104 bus master/initiator
- Up to 4 Bus master add-on cards capable
- 3.3 V or 5 V PCI bus signalling
- mini PCI Bus
- 133 MB/sec bus bandwidth
- PCI-104 bus master/initiator
- Zasilanie
- +5 V Power Supply
- Cechy fizyczne
- PCI/104-Express stackable card form factor
- Standard 3.775" x 4.05"
- Passive cooling
- Environmental
- Operating temperature: -40 ~ +85ºC
- Relative humidity: 5 ~ 95% non-condensing (optional conformal coating)
- Inne
- Single +5 V supply
- Wsparcie oprogramowania
- Linux
- VxWorks and others on request
- Tiny-PPC837-666/512-2G-Ext - MPC8377E PowerPC SBC (-40 ~ +85°C)
- Complete cable set for Tiny-PPC837
Parametry techniczne:
| Format karty: | PCIe/104 |
| Temperatura pracy: | -40ºC ~ 85ºC |
| End of Life: | Tak |
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
