NuPRO-E330 (End of Life)

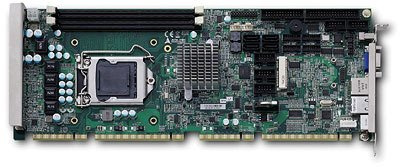

The ADLINK NuPRO-E330 is a PICMG 1.3 System Host Board (SHB) supporting the next-generation Intel® Core™ i7/i5/i3 and Pentium® processors in LGA1156 package to deliver a scalable high performance platform for a wide array of industrial applications. The NuPRO-E330 supports 32nm and 45nm process CPUs at up to 3.33GHz with integrated graphics and memory controllers, Direct Media Interface (DMI) and Flexible Display Interface (FDI) connectivity to the Intel® Q57 Express Chipset. Dual-channel DDR3 1066/1333 MHz memory is supported up to a maximum of 8 GB in two DIMM slots.

These advanced features, coupled with PCI Express® x16 expansion capability, dual PCI Express®-based Gigabit Ethernet, PCI Express Mini Card slot and diverse I/O and storage make the NuPRO-E330 ideal for instrumentation and automation control applications.

Features

LGA1156 Intel® Core™ i7/i5/i3, Pentium® Dual Core Processor Intel® Q57 Express Chipset supports PCI Express 2.0 Intel® Matrix Storage Technology, supports RAID 0/1/5/10 Intel® Active Management Technology 6.0 PCIe Mini Card slot 6x COM ports (including 1x RS-232/422/485/485+)
