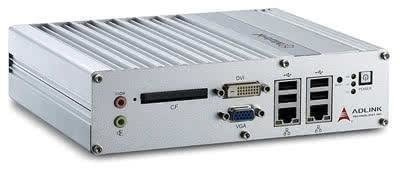

Bezwentylatorowy komputer do zabudowy z Intel Atom D2550 1.86 GHz, 2 GB DDR3 RAM, 320 GB 2.5" HDD, VGA/DVI, 3x GbE, 2x RS-232, 2x RS-232/422/485, 6x USB 2.0, 1x SATA-2 i audio (0 ~ +50°C); zasilanie 6 ~ 36 Vdc
Features
Features
- Intel Atom D2550 processor + NM10 chipset
- 2x software-programmable RS-232/422/485 + 2x RS-232 ports
- 3x 1000/100/10 Mbps Ethernet ports, 6x USB 2.0 ports,
4x digital input and output - 1x external CF slot and 1x internal PCIe Mini Card socket with USIM slot
- Built-in wide-range DC power input 6 ~ 36 Vdc
- Rugged, -20 ~ +70°C fanless operation (w/ industrial SSD)
- System Core
- Processor: Intel Atom D2550 1.86 GHz CPU
- Chipset: Intel NM10
- Video: VGA+DVI dual display, supports 1920 x 1200 resolution
- Memory: 2 GB DDR3 1066 MHz SODIMM module
(Up to 4 GB support)
- I/O Interfaces
- Ethernet: 3x GbE ports (3x Intel 82574L)
- Serial Ports: 2x software-programmable RS-232/422/485, and 2x RS-232
- USB: 6x USB 2.0 ports
- DI/O: 4 digital input and output
- Audio: 1x mic-in and 1x Line-out
- Mini PCIe: 1x internal mini-PCIe card socket
- USIM: 1x USIM socket for 3G communication
- WDT: Watchdog timer support
- Power Supply
- DC Input: Built-in 6 ~ 36 Vdc wide-range DC input
- AC Input: Optional 80 W external AC-DC adapter for AC input
- Storage Device
- SATA HDD: 1x onboard SATA-2 port for 2.5" HDD/SSD installation
- CompactFlash: 1x type I CF socket, supporting PIO and DMA modes
- Mechanical
- Dimensions (W x D x H): 210 x 170 x 53 mm
- Weight: 1.8 kg
- Mounting: VESA 100 hardware kit for wall-mounting
- Environmental
- Operating Temperature:
• Standard: 0 ~ +50°C
• Extended temperature option: -20 ~ +70°C (w/industrial SSD) - Storage Temperature: -40 ~ +85°C (excl. HDD/SSD/CF)
- Humidity: ~95% @ 40°C (non-condensing)
- Operating Vibration:
• 5 Grms, 5 ~ 500 Hz, 3 axes (w/ CF or SSD)
• 0.5 Grms, 5 ~ 500 Hz, 3 axes (w/ 2.5" HDD)
- Operating Shock:
100 G, half sine 11 ms duration (w/ CF or SSD) - ESD: Contact +/- 4 kV, Air +/- 8 kV
- EMC: CE and FCC Class A
- OS Information
- Windows: CE7.0/XP/XP Embedded/Embedded Standard 7/7
- Linux: Linux Distribution by Request
- MXE-1301/M2G/HDD320G - Fanless embedded system with dual-core Intel Atom D2550 1.86 GHz CPU, 2 GB DDR3 RAM, 320 GB 2.5" HDD and VGA/DVI-I, 3x GbE, 2x RS-232, 2x RS-232/422/485, 6x USB 2.0, 1x SATA-2 and audio interface (-0 ~ +50°C); 6 ~ 36 Vdc power
- 4 GB DDR3 Upgrade - Upgrade to 4 GB DDR3 memory
- 500 GB HDD Option - Factory-installed 500 GB SATA hard disk drive (0 ~ +60°C)
- 8 GB industrial SSD Option - Factory-installed 8 GB SLC industrial-grade SATA solid state disk (-40 ~ +85°C)
- 32 GB SSD Option - Factory-installed 32 GB MLC SATA solid state disk (0 ~ +70°C)
- 80 W AC-DC Adapter - 80 W industrial-grade AC-DC adapter (-20 ~ +70°C)
- 90 W AC-DC Adapter - 90 W commercial-grade AC-DC adapter (0 ~ +50°C)
- Extended Temperature Option - Optional screening service to extend the operating temperature
of the MXE-1300 series to -20 ~ +70°C
Parametry techniczne:
| End of Life: | Tak |
