Features
- SIngle Quad-Core Intel Xeon L5518 processor
- Six memory sockets support DDR3-1066 REG/ECC up to 48 GB maximum capacity
- Intel 82599 10GbE controller provides two 10GBASE-KX4 ports on Fabric Interface
- Intel Hyper-Threading Technology support for multi-threaded software applications
- Single AMC.0 Mid-size bay (optional)
- CPU / Chipset / Memory
- CPU: Single Intel Xeon L5518 (4C/8T) 2.13GHz, QPI 5.86 GT/s, 8 MB L2 Cache (LGA1366)
- Chipset: Intel 5520/ICH10R chipset
- Memory: Six DDR3-1066 240-pin RDIMM sockets, up to 48 GB
- BIOS
- Chip: AMIBIOS8 on SPI flash memory
- Features:
• Intel PXE pre-boot
• Remote Console - I/O Interfaces
- Graphics: ATI ES1000 with 64 MB VRAM, up to UXGA 1600 x 1200 resolution
- AdvancedMC (optional):
One AMC.0 Mid-size bay:
AMC.1 Type 4,
AMC.2 E2 / Type 4 to Fabric,
AMC.3 S2 - Ethernet:
• Dual 10/100/1000BASE-T Base Interface channels
• Dual 10GBASE-KX4 Fabric Interface channels
• Dual 10/100/1000BASE-T Egress ports - Storage:
• On-board 2.5" SATA 3 Gb/s HDD (optional)
• On-board bootable 4 GB USB NAND flash
• Dual AMC.3 SATA 3 Gb/s ports (Port2) (optional)
• Dual AMC.3 SAS ports (Port3) (optional) - USB: Three USB 2.0 ports on front panel
- Front Panel I/O: AMC (optional), VGA, USB1/2/3, LAN1/2, COM1
- PICMG Standards
- AdvancedTCA:
• PICMG 3.0 R2.0 ECN002
• PICMG 3.1 Ethernet Over PICMG 3.0 R1.0 , Option 1/9 - AdvancedMC:
• PICMG AMC.0: AdvancedMC Card Specification R2.0
• PICMG AMC.1: PCI Express and Advanced Switching R1.0
• PICMG AMC.2: Gigabit Ethernet R1.0
• PICMG AMC.3: Storage Interfaces R1.0 - Other Features
- Operating System:
• Windows Server 2008, Windows Server 2003,
• Red Hat Enterprise Linux 5.3 - Mechanical and Environmental
- Form Factor: PICMG 3.0 R2.0 ECN002 AdvancedTCA
- Dimensions (L x W x H): 322.25 x 280 mm x 6 HP
- Weight: 4.1 kg
- Operating Temp.: 0 ~ +50°C
- Storage Temp.: -40 ~ +70°C
- Humidity: 5 ~ 95%, non-condensing
- Shock: 20 G peak-to-peak, 11 ms duration, non-operation
- Vibration:
• Non-operation: 1.88 Grms, 5 ~ 500 Hz each axis
• Operation: 0.5 Grms, 5 ~ 500 Hz each axis - Power Consumption: 200 W
- Certification: FCC, CE, UL, NEBS Level 3 (design)

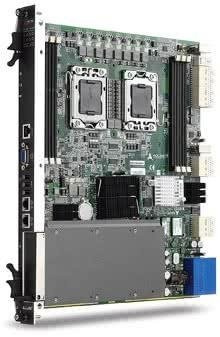

- aTCA-6105A/S5518/M4G - Single L5518 Quad-Core 2.13 GHz Xeon 10GbE processor blade, DDR3 RDIMM 4 GB x1, AMC bay
- aTCA-R6155 - Rear Transition Module with SFP GbE x 2, USB x 2, SAS/SATA HDD bay x 2, COM x 1
- AMC-7000/SATA320G - Mid-size SATA 320 GB AMC HDD moduleFeatures
