Features
- Single Intel Xeon E5-2658/ 2648L (8C/16T) processor
- Eight memory sockets support VLP DDR3-1600 REG/ECC up to 128 GB
- Intel C604 PCH
- Dual 10GBASE-KX4 Fabric Interface channels
- Intel Hyper-Threading Technology
- Intel QuickPath Interconnect
- CPU / Chipset / Memory
- CPU: Single Intel Xeon E5-2658 (8C/16T) (Socket R)
- Chipset: Intel C604 PCH
- Memory: Eight DDR3-1600 240-pin VLP RDIMM sockets, up to 128 GB
- BIOS
- Chip: AMI BIOS on SPI flash memory
- Features:
• Intel PXE pre-boot
• Remote Console - I/O Interfaces
- Graphics: Silicon Motion SM750, PCI-E x1, up to 1920 x 1440 resolution
- Ethernet:
• Dual 10/100/1000BASE-T Base Interface channels
• Dual 10GBASE-KX4 Fabric Interface channels
• Quad 10/1001000BASE-T Egress Ports or Quad SFP GbE Egress ports (optional) - Storage: On-board bootable 16 GB SATA DOM, up to 32 G
- USB: Two USB 2.0 ports on front panel
- Front Panel I/O: VGA, USB1/2, LAN1/2/3/4, COM1/2 (mini-USB)
- PICMG Standards
- AdvancedTCA:
• PICMG 3.0 R3.0
• PICMG 3.1 Ethernet Over PICMG 3.0, Option 9 - Other Features
- Packet Processing:
• Optional hardware offload for packet processing acceleration - Acceleration daughter card
- Operating System:
• Server 2008 R2,
• Red Hat Enterprise Linux 6.2 - Mechanical and Environmental
- Form Factor: PICMG 3.0 R3.0 AdvancedTCA
- Dimension (L x W x H): 322.25 x 280 mm x 6HP
- Weight: 3.85 KG
- Operating Temp.: 0 ~ +55°C
- Storage Temp.: -40 ~ +70°C
- Humidity: 5 ~ 95%, non-condensing
- Shock: 20 G peak-to-peak, 11 ms duration, non-operating
- Vibration:
• Non-operating: 1.88 Grms, 5 ~ 500 Hz each axis
• Operating: 0.5 Grms, 5 ~ 500 Hz each axis - Power Consumption: Max. 300 W with dual Intel E5-2658 CPU
- Certification: FCC, CE, UL, NEBS Level 3 (design)

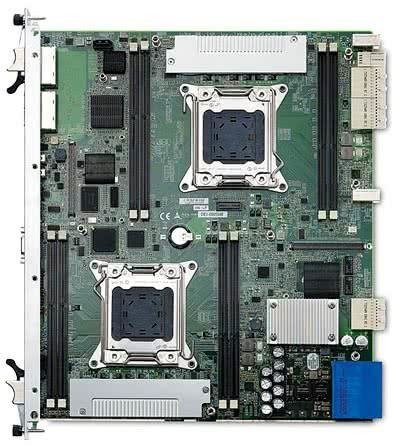

- aTCA-6250/S2658/M8G - Single 8-core Intel Xeon E5-2658 2.1GHz 10GbE processor blade, DDR3-1600 VLP RDIMM 8 GB x1
- aTCA-R6270 - aTCA-R6270 RTM with 1x RJ45 Serial Port, 2x USB 2.0 Port, 2x SFP+ 10GbE Port and 2x SAS/SATA HDD Bay (Hot Swappable)
