Features
- Uncompressed 1920 x 1080p, 60 fps video stream
- Support for NTSC/PAL, S-video, RGB and YPbPr video input
- Support for HDMI and DVI video input
- Support for HDMI, S/PDIF audio input
- 10-bit high resolution ADC
- Support for HDCP (High-Bandwidth Digital Content Protection)
- PCI Express x4 interface
- Configurable EDID
- Direct SDK support
- Form Factor: PCI Express x4 compliant
- Video Input:
• Digital: DVI 1.0, HDMI 1.3
• Analog: RGB, YPbPr, NTSC/PAL, S-video - Video Input Format:
• HD:
720p@50 fps, 720p@60 fps
1080i@25 fps, 1080i@30 fps
1080p@25 fps, 1080p@30 fps
1080p@50 fps, 1080p@60 fps
• SD:
720 x 576@25 fps PAL
720 x 486@30 fps NTSC - Pixel Output Format:
• RGB:
32-bit RGB, 30-bit RGB, 24-bit RGB
Some computers may experience minor (10% or less) reduction of fps performance
when 32-bit or 30-bit RGB output settings are in effect.
• YUV:
24-bit 4:4:4 YCbCr
16-bit 4:2:2 YCbCr
• Monochrome: 8-bit Y - Audio Input: S/PDIF, HDMI
- Frame Buffer: DDR2, 512 MB
- Connectors:
• DVI: DVI-D, HDMI & RGB with sync input
• D-SUB on I/O Bracket : NTSC/PAL, S-Video
• BNC on I/O Bracket: YPbPr
• Toslink & RCA: S/PDIF - Operating Environment:
Temperature: 0 ~ +55°C
Humidity: 5 ~ 90% RHNC - Storage Environment:
Temperature: 0 ~ +70°C
Humidity: 0 ~ 95% RHNC - Power Requirements: +12 V max @ 0.5 A, +3.3 V max @ 2 A
- Dimensions (W x H - not including connectors): 175 x 111 mm
- Slot Requirement: 2 peripheral slots (PCIe-HDV62A w/I/O bracket)
- OS Information
- Windows Vista/XP/7
- Software Compatibility
- Microsoft DirectX
- NI LabVIEW
- Software Recommendations
- ViewCreatorPro

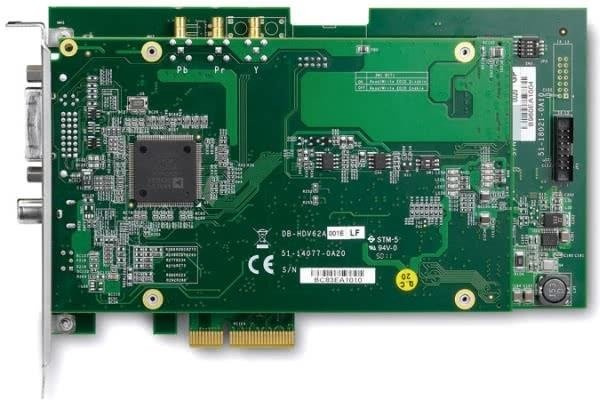

- PCIe-HDV62A - 1-CH PCI Express HDMI video / audio capture card
- PCIe-HDV62A I/O bracket - YPbPr, S-video and NTSC/PAL I/O
- DVI – DVI and VGA cable - DVI-I to VGA and DVI-D cable
- DB9F to S-Video & RCA cable - D-sub to S-video and RCA cable
