Features
- Connect I/O points up to 2,016 points
- Connect motion axis up to 256 axes
- Programmable timer interrupt
- RJ-45 jack for easy installation
- Software selectable transmission speed: 3/6/12 Mbps for HSL
- Software selectable transmission speed: 2.5/5/10/20 Mbps for Motionnet
- Non-volatility RAM onboard
- Bus: PCI local bus specification Rev. 2.1 compliant
- Master Controller:
• Dedicated Motion Controller: Motionnet ASIC master control (80 MHz external clock)
• Dedicated I/O Controller: HSL ASIC master control (48 MHz external Clock) - Motionnet Interface:
• RS-485 with transformer isolation
• Half duplex communication
• 2.5/5/10/20 Mbps transmission rate can be set by software (20 Mbps default) - HSL Interface:
• RS-485 with transformer isolation
• Full duplex communication
• 3/6/12 Mbps transmission rate can be set by software (6 Mbps default) - Connector: RJ45 connector x 4 (MRJ45 connector for Motionnet; HRJ45 connector for HSL)
- Interrupt: Status read back
- LED Indicator: Link status (Red for Motionnet Link status; Green for HSL Link status)
- Storage Temperature: -20 ~ +80°C
- Power Consumption: +3.3 V @ 1.2 A (typical), +5 V @ 1.5 A (typical)
- Dimensions (L x W): 119.50 x 100.20 mm
- Windows Platform
- Available for Windows 7/Vista (32-bit)/XP
- Recommended programming environments: VB/VC++/BCB/Delphi
- MotionCreatorPro 2
- MotionCreatorPro 2 is a Windows-based application development software package included with ADLINK Motion control products. An on-screen display lists all installed axes information and I/O signal status. This utility thus enables the most of ADLINK motion control products to provide precise positioning control with less effort.

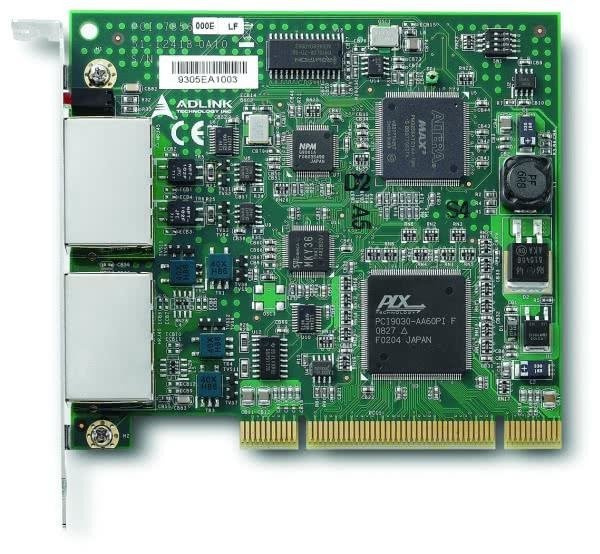

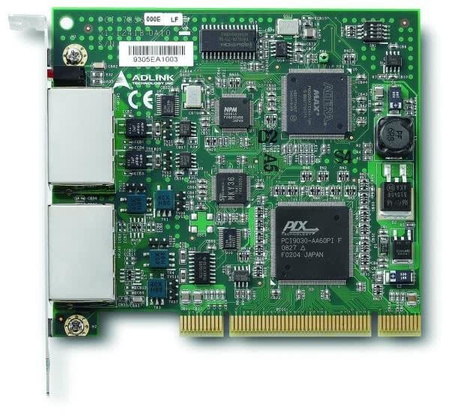

- PCI-7856 - Master-slave distributed motion & I/O master controller
