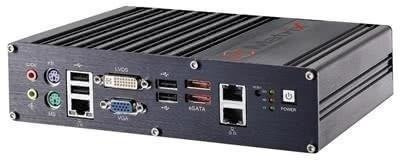

Bezwentylatorowy komputer do zabudowy z Intel Atom D510 1.66 GHz, 1 GB DDR2 RAM, VGA/DVI-I, 3x GbE, 2x RS-232, 2x RS-232/422/485, 6x USB 2.0, 1x SATA i audio (0 ~ +50°C); zasilanie 9 ~ 32 Vdc
Features
Features
- Intel Atom D510 1.66 GHz processor + Intel ICH8-M chipset
- Rugged, -20 ~ +70°C fanless operation
- Built-in 9 ~ 32 Vdc wide-range DC power input
- Two software-programmable RS-232/422/485 ports, and two RS-232 ports
- Up to three 1000/100/10 Mbps Ethernet ports
- Up to six USB 2.0 ports
- One internal PCIe Mini Card socket and USIM socket
- One external CF socket
- System Core
- Processor: Intel Atom D510 1.66 GHz CPU
- Chipset: Intel I/O Controller Hub 8 Mobile (ICH8-M)
- Video:
• VGA+LVDS output by VGA+DVI-I stacked connector
• Analog CRT, supports QXGA (2048 x 1536) resolution
• 18-bit LVDS output by DVI-I connector - Memory: 1 GB DDR2 667 MHz SODIMM module
- I/O Interfaces
- Ethernet: 3x GbE ports (1x Realtek 8111C + 2x Intel 82574L)
- Serial Ports: 2x software-programmable RS-232/422/485 (COM1 & COM2)
2x RS-232 (COM3 & COM4) - USB: 6x USB 2.0 ports
- Audio: 1x mic-in and 1x Line-out
- KB/MS: 1x PS/2 keyboard and 1x PS/2 mouse
- Mini PCIe: 1x internal PCIe mini card socket
- USIM: 1x USIM socket for 3G communication (used for a 3G-mini module)
- WDT: Supports a watchdog timer
- Power Supply
- DC Input: Built-in 9 ~ 32 Vdc wide-range DC input
3P pluggable connectors with latch (GND, V-, V+) - AC Input: Optional 80 W external AC-DC adapter for AC input
- Storage Device
- SATA HDD: On-board SATA port for 2.5" HDD/SSD installation
- CompactFlash: 1x type I CF socket, supporting PIO and DMA modes
- eSATA: 2x eSATA interface connectors on front panel for storage expansion
- Mechanical
- Dimensions (W x D x H): 210 x 170 x 53 mm
- Weight: 1.8 kg
- Mounting: Wall-mount kit
- Environmental
- Operating Temperature:
• Standard: 0 ~ +50°C
• Extended temperature option: -20 ~ +70°C (w/industrial SSD) - Storage Temperature: -40 ~ +85°C (excl. HDD/SSD/CF)
- Humidity: ~95% @ 40°C (non-condensing)
- Operating Vibration:
• 5 Grms, 5 ~ 500 Hz, 3 axes (w/ CFast or SSD)
• 0.5 Grms, 5 ~ 500 Hz, 3 axes (w/ 2.5" HDD) - Operating Shock:
100 G, half sine 11 ms duration (w/ CF or SSD) - ESD: Contact +/- 4 kV, Air +/- 8 kV
- EMC: CE and FCC Class A
- OS Information
- Windows: XP / XP Embedded / 7
- Linux: Linux Distribution by Request
- MXE-3002 - Fanless embedded system with dual-core Intel Atom D510 1.66 GHz CPU, 1 GB DDR2 RAM and VGA/DVI-I, 3x GbE, 2x RS-232, 2x RS-232/422/485, 6x USB 2.0, 1x SATA and audio interface (-0 ~ +50°C); 9 ~ 32 Vdc power
- 2 GB DDR3 Upgrade - Upgrade to 2 GB DDR3 memory
- 500 GB HDD Option - Factory-installed 500 GB SATA hard disk drive (0 ~ +60°C)
- 8 GB industrial SSD Option - Factory-installed 8 GB industrial-grade SATA solid state disk (-40 ~ +85°C)
- 32 GB SSD Option - Factory-installed 32 GB SATA solid state disk (0 ~ +70°C)
- 80 W AC-DC Adapter - 80 W industrial-grade AC-DC adapter (-20 ~ +70°C)
- 90 W AC-DC Adapter - 90 W commercial-grade AC-DC adapter (0 ~ +50°C)
- Extended Temperature Option - Optional Screening to extend the operating temperature
of the MXE-3000 series to -20 ~ +70°C
Parametry techniczne:
| End of Life: | Tak |
