Features
- Up to 200 MS/s sampling rate
- High resolution 14-bit ADC
- ±1 V Input range with 50 Ω input impedance and DC couple
- Up to 100 MHz bandwidth for analog input
- High speed PCI Express Gen x4 bus interface
- Scatter-Gather DMA data transfer for high speed data streaming
- One external digital trigger input
- Digital trigger output to stimulate external instruments
- Full Auto-calibration
- Analog Input
- Number of Channels: 1 single-ended channel
- Input Impedance: 50 Ω ± 2%
- Input Coupling: DC
- Input Signal Range: ±1.0 V
- Overvoltage Protection: ±5 V
- ADC Resolution: 14-bit, 1 in 16384
- Offset Error: ±1 mV
- Gain Error: ±0.5% of input
- -3dB Bandwidth: 100 MHz
- Timebase
- Sample Clock Source: onboard oscillator
- Timebase Frequency: 200 MHz
- Auto Calibration
- Reference Voltage: +5.000 V
- Reference Temperature drift: < 5.0 ppm/℃
- Recommended warm-up time: 15 minutes
- Trigger
- Trigger Source:
• Software
• External digital - Trigger Mode:
• Post-Trigger - External Digital Trigger Input
• Compatibility: 3.3 V TTL
• Trigger Condition: Rising edge or failinig edge, software programmable
• Minimum pulse width: 20 ns
- Digital Trigger Output (Software Selectable)
• Compatibility: 3.3 V TTL
• Trigger Condition: Positive or negative, software programmable - General Specifications
- Environment
• Operating Environment
- Ambient temperature: 0 ~ +50°C
- Relative humidity: 5% to 95% non-condensing
• Storage Temperature
- Ambient temperature: -20 ~ +80°C
- Relative humidity: 5 ~ 95% non-condensing - Physical
• PCB Dimensions (H x W): 106.7 x 174.6 mm - IO Connector
• SMA x 1 for analog input
• SMA x 2 for external trigger input and trigger output - Bus Interface
• PCI Express Gen x 4 - Certifications
- EMC/EMI: CE, FCC Class A
- Operating Systems
- Windows 2000/XP/Vista/7
- Recommended Software
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- Driver Support
- WD-DASK for Windows
- DAQPilot for LabVIEW
- DAQPilot for Windows
- DAQ-MTLB for MATLAB

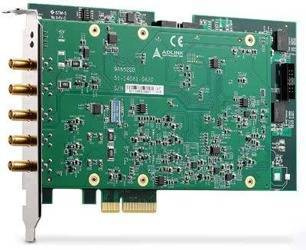

- PCIe-9842 - 200 MS/s 14-Bit 1-CH High-Speed PCI Express Digitizer
