Features
- PXI specification Rev 2.2 compliant
- Hardware-based arbitrary waveform generation
- Onboard 8 k-sample D/A FIFO
- Programmable bipolar or unipolar analog output ranges on per channel basis
- Programmable internal or external reference sources on per channel basis
- 8-CH 400 kS/s 14-bit single-ended analog inputs
- Onboard 2 k-sample A/D FIFO
- Bipolar or unipolar analog input ranges
- Scatter-gather DMA for both analog inputs and outputs
- 24-CH TTL digital input/output
- 2-CH 16-bit general-purpose timer/counter
- Analog & digital triggering
- Fully auto-calibration
- Multiple cards synchronization through SSI (System Synchronization Interface) bus or PXI trigger bus
- Analog Input
- Number of channels: 8 single-ended
- Resolution: 14 bits, no missing codes
- Maximum sampling rate: 400 kS/s
- Gain: 1
- Bipolar input ranges: ±10 V
- Unipolar input ranges: 0-10 V
- Offset error: ±1 mV
- Gain error: ±0.03% of FSR
- Input coupling: DC
- Overvoltage protection: Power on: Continuous ±30 V, Power off: Continuous ±15 V
- Input impedance: 1 GΩ/6 pF
- Trigger sources: Software, external digital/analog trigger, SSI bus
- Trigger modes: Post-trigger, delay-trigger, and repeated trigger
- FIFO buffer size: 2 k samples
- Data transfers: Polling, scatter-gather DMA
- Analog Output
- Number of channels: 4 voltage outputs
- Resolution: 12 bits
- Output ranges: 0-10 V, ±10 V, 0-AOEXTREF, ±AOEXTREF
- Maximum update rate: 1 MS/s
- Slew rate: 20 V/μs
- Settling time: 3 μs to ±0.5 LSB accuracy
- Offset error: ±2 mV
- Gain error: ±0.02% of max. output
- Driving capacity: ±5 mA
- Stability: Any passive load, up to 1500 pF
- Trigger sources: Software, external digital/analog trigger, SSI bus
- Trigger modes: Post-trigger, delay-trigger, and repeated trigger
- FIFO buffer size: 8 k samples
- Data transfers: Programmed I/O, scatter-gather DMA
- Digital I/O
- Number of channels: 24-CH 8255 programmable input/output
- Compatibility: 5 V/TTL
- Data transfers: Programmed I/O
- Timer/Counter
- Number of channels: 2
- Resolution: 16 bits
- Compatibility: 5 V/TTL
- Base clock available: 40 MHz, external clock up to 10 MHz
- Auto Calibration
- Onboard reference: +5 V
- Temperature drift: ±2 ppm/˚C
- Stability: ±6 ppm/1000 Hrs
- General Specification
- Dimensions: 160 mm x 100 mm (not including connectors)
- Connector: 68-pin VHDCI female
- Operating temperature: 0 to 55˚C
- Storage temperature: -20 to 70˚C
- Humidity: 5 to 95 %, non-condensing
- Power requirements: +5 V 1.6 A typical
- Operating Systems
- Windows 7/Vista/XP/2000/2003 Server
- Linux
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- D2K-DASK for Windows
- D2K-DASK/X for Linux

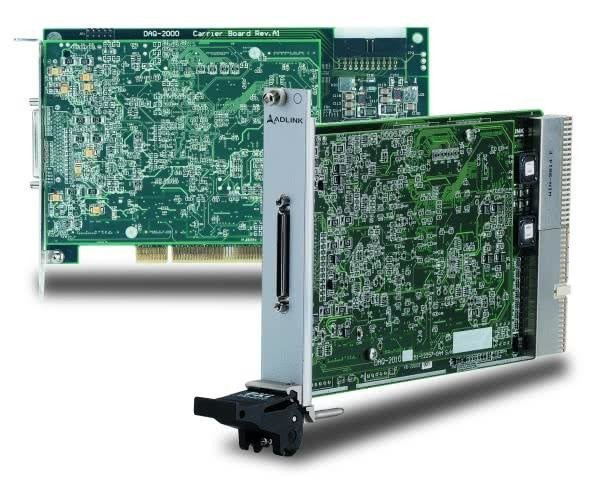

- PXI-2501 - 8 x AI 14-bits 400 kS/s and 4 x AO 12-bits 1MS/s Multi-Function DAQ Card
- Terminal Boards
- DIN-68S-01 - Terminal Board with One 68-pin SCSI-II Connector and DIN-Rail Mounting (cables are not included)
- Cables
- ACL-10568-1 - 68-Pin SCSI-VHDCI cable
- SSI Bus Cables (for multiple cards synchronization)
- ACL-SSI-2 - SSI Bus cable for 2 devices
- ACL-SSI-3 - SSI Bus cable for 3 devices
- ACL-SSI-4 - SSI Bus cable for 4 devices
