Features
- 32-bit CompactPCI, PICMG 2.0 Rev 2.1
- Plug-and-play, IRQ & I/O address automatically assigned by PCI BIOS
- 8 asynchronized communications ports with intelligent buffer
- Eight RS-232 ports
- Supports up to 2 cards per system
- Suitable for modems, data display, data collection, telecommunications
- Rear I/O version
- Support multiple OS
- Surge protector in TXD/RXD signal line
- Rugged DB-62 connector
- Serial Communications Controller Type: 16C550A compatible
- System I/O Mapping:
Assigned by PCI BIOS
Shared IRQ - Port Capability: 8 independent RS-232 ports (Max. two cards per system, 8-port max.)
- Baud Rate: Each port can be configured to 50 to 115,200 bps
- Isolation Voltage: 2500 Vrms
- Connector: DB62 female connector
- Operating Temperature: 0 ~ +60˚C
- Storage Temperature: -20 ~ +70˚C
- Humidity: 5 ~ 95%, non-condensing
- Cable: External cable with 8 standard DB25 (C825M) / DB9 (C809M) connectors
- OS Information
- Windows 7/XP
- Linux

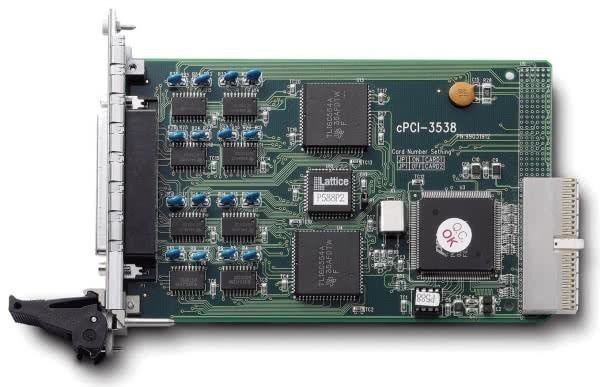

- cPCI-3538R - 8-port asynchronous serial communications module with rear I/O support
- C809M - DB-62 to eight DB-9 male cable for cPCI-3538
- C825M - DB-62 to eight DB-25 male cable for cPCI-3538
