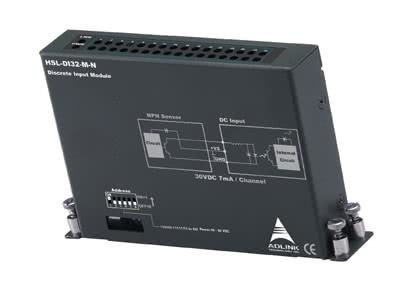

HSL-DI32-M-N

32-CH Discrete NPN Sinking Input HSL Module; metal case series

Właściwości

• Slave ID consumption: 2 consecutive from odd
• 32-CH digital input -N: for NPN sinking type sensor or dry contact
• Photo couple isolation voltage: 2500Vrms
• Input impedance: 4.7KΩ
• Input current: ± 10mA(Max), ± 12.5mA(Peak)
• Input voltage: ± 40V (Max)
• LED Indicator: Power, Link and Input status
• Power Supply: +10V to +30VDC
