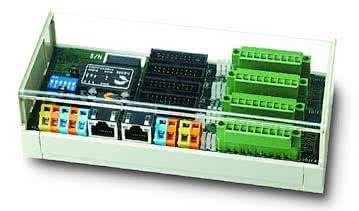

Name: HSL-4XMO-CG-N
Brand: Adlink Technology

Zewnętrzny moduł szybkiej sieci HSL-bus - 4-osiowe sterownik napędów ze złączami pin-header (20Pin) i wyjściami ogólnego przeznaczenia typu NPN

Support HSL protocol: 3/6/12Mbps & FD/HD selectable
Up to 60 axes in one HSL network
Pulse output rate up to 6.55 MHz
Point-to-point control / linear & circular interpolation
Continuous contour motion
4-axis position compare & trigger output channels
Motion point table management
Motion script download (G-code-like language)

HSL-4XMO is an advanced 4-axis remote motion control module via HSL bus. Combined with HSL I/O and motion control modules, it can meet many requirements in machine automation (MA) field. HSL-4XMO offers two models - HSL-4XMO-CG-N/P and HSL-4XMO-CD-N/P. HSL-4XMO-CG-N/P is suitable for steppers and linear motors. HSL-4XMO-CD-N/P is suitable for servo motors with transfer cable. Except the advanced motion control library (refer to PCI-8164), ADLINK also provides two extra features for users. Motion Point Table Managements can let users assign the points into the module in advance. Then, users can issue command to continuously move the points without consuming CPU resource. Motion Script Download provides users a easy interface to program the application. With this script, the DSP inside HSL-4XMO can decode the file and execute itself.
